Spring Cloud- Netflix Eureka + Ribbon + Hystrix Simple Example

In this post we make use of Netflix Hystrix for fault tolerance.
In a previous post we had implemented Load Balancing using Spring Cloud- Netflix Eureka + Ribbon.

Spring Cloud - Table Of Contents
Microservice Registration and Discovery with Spring cloud using Netflix Eureka- Part 1.
Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 2.
Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 3.
Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 4.
Spring Cloud- Netflix Eureka + Ribbon Simple Example
Spring Cloud- Netflix Eureka + Ribbon + Hystrix Fallback Simple Example
Spring Cloud- Netflix Hystrix Circuit Breaker Simple Example
Spring Cloud- Netflix Feign REST Client Simple Example
Spring Cloud- Netflix Zuul +Eureka Simple Example
Spring Cloud Config Server using Native Mode Simple Example
Spring Cloud Config Server Using Git Simple Example
Spring Boot Admin Simple Example
Spring Cloud Stream Tutorial - Publish Message to RabbitMQ Simple Example
Spring Cloud Stream Tutorial - Consume Message from RabbitMQ Simple Example
Spring Cloud Tutorial - Publish Events Using Spring Cloud Bus
Spring Cloud Tutorial - Stream Processing Using Spring Cloud Data Flow
Spring Cloud Tutorial - Distributed Log Tracing using Sleuth and Zipkin Example
Spring Cloud Tutorial - Spring Cloud Gateway Hello World Example
Spring Cloud Tutorial - Spring Cloud Gateway Filters Example
Spring Cloud Tutorial - Spring Cloud Gateway + Netflix Eureka Example
Spring Cloud Tutorial - Spring Cloud Gateway + Netflix Eureka + Netflix Hystrix Example
Spring Cloud Tutorial - Secure Secrets using Spring Cloud Config + Vault Example

What is Netflix Hystrix? Need for it?

Hystrix is a latency and fault tolerance library designed to isolate points of access to remote systems, services and 3rd party libraries, stop cascading failure and enable resilience in complex distributed systems where failure is inevitable.
Usually for systems developed using Microservices architecture, there are many microservices involved. These microservices collaborate with each other.
Consider the following microservices-

Suppose if the microservice 9 in the above diagram failed, then using the traditional approach we will propagate an exception. But this will still cause the whole system to crash anyways.
This problem gets more complex as the number of microservices increase. The number of microservices can be as high as 1000. This is where hystrix comes into picture-
We will be using two features of Hystrix-

• Fallback method
• Circuit Breaker

In this post we will have a look at Hsytrix Fallback method. In next post we will have implement the Hystrix Circuit Breaker.

In previous posts we had two services- employee-consumer consuming the service exposed by the employee-producer.
The simplified diagram is as below-


Now suppose due to some reason the employee-producer exposed service throws an exception. In this case using Hystrix we define a fallback method. This fallback method should have the same return type as the exposed service. In case of exception in the exposed service the fallback method will return some value.

Lets Begin-

Modify the employee-producer pom.xml to include the spring cloud hystrix starter dependency

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.javainuse</groupId>
	<artifactId>employee-consumer</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>1.4.1.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-eureka</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-hystrix</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>

	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>Camden.SR6</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>


</project>

Next modify the SpringBootHelloWorldApplication code to add the EnableHystrix syntax

package com.javainuse;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@SpringBootApplication
@EnableCircuitBreaker
@EnableDiscoveryClient
public class SpringBootHelloWorldApplication {

	public static void main(String[] args) {
		SpringApplication.run(SpringBootHelloWorldApplication.class, args);
	}
}

Next we modify the TestController.java to add the fallback method.

package com.javainuse.controllers;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import com.javainuse.model.Employee;
import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;

@RestController
public class TestController {

	@RequestMapping(value = "/employee", method = RequestMethod.GET)
	@HystrixCommand(fallbackMethod = "getDataFallBack")
	public Employee firstPage() {

		Employee emp = new Employee();
		emp.setName("emp1");
		emp.setDesignation("manager");
		emp.setEmpId("1");
		emp.setSalary(3000);

		if(emp.getName().equalsIgnoreCase("emp1"))
			throw new RuntimeException();

		return emp;
	}

	public Employee getDataFallBack() {

		Employee emp = new Employee();
		emp.setName("fallback-emp1");
		emp.setDesignation("fallback-manager");
		emp.setEmpId("fallback-1");
		emp.setSalary(3000);

		return emp;

	}

}

Next start the Eureka server, employee-producer, employee-consumer modules. When we start the employee-consumer, the service exposed by the employee-producer gets called.

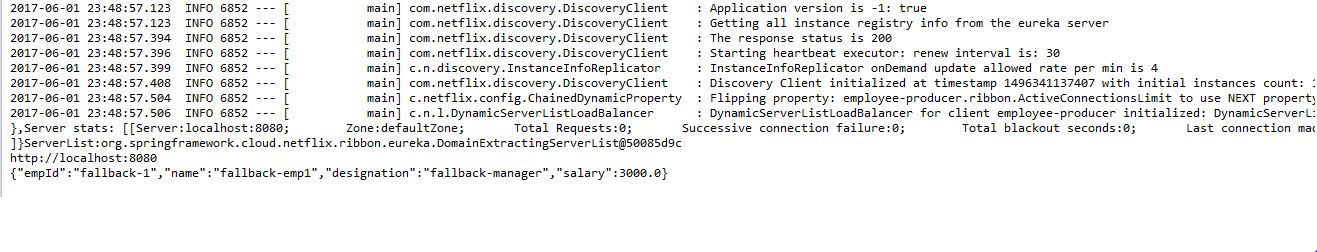

In the employee-consumer console we will see that the Employee object created in the fallback method of TestController class of employee-producer.

Download Source Code

Download it -
Employee Producer Service with Hystix code
Employee Consumer Service
Eureka Service
