Understanding Apache Camel Redelivery policy

In this post we will implement Apache Camel Redelivery policy.
In previous Apache Camel Exception Handling we had written code to implement exception handling.
A redelivery policy defines rules when Camel Error Handler perform redelivery attempts. For example you can setup rules that state how many times to try redelivery, and the delay in between attempts, and so forth. Suppose we have a scenario where an exception is caused due to network issue, we will want to retry such messages again before the exception is handled.

Apache Camel - Table of Contents
File Transfer Using Java DSL Apache Camel
Apache Camel Java DSL + Spring Integration Hello World Example
Apache Camel Exception Handling Using Simple Example
Apache Camel Redelivery policy using example
Integrate Apache Camel and ActiveMQ
EIP patterns using Apache Camel
Apache Camel Tutorial- Integrate Spring Boot+ Apache Camel
Apache Camel Tutorial- Integrate with MySQL DB using SQL query
Apache Camel EIP - Splitter and Aggregator pattern
Apache Camel Unit Testing
Apache Camel + Spring + Quartz Hello World Example
Camel application deployment on JBoss Fuse
Apache Camel + Apache CXF SOAP Webservices
Apache Camel + JAX-RS REST Webservice
Apache Camel + CXFRS REST Webservice
Apache Camel Routing Slip EIP Pattern
Apache Camel Dynamic Router Pattern
Apache Camel Load Balancer EIP Pattern
Apache Camel Interceptors
Apache Camel + Kafka Hello World Example
Apache Camel - Marshalling/Unmarshalling XML/JSON Data Example
Calling and Consuming Webservices using Apache Camel
Apache Camel Tutorial - Send SMTP Email Using Gmail
Apache Camel Tutorial - SEDA component Hello World Example
Spring Boot + Apache Camel + RabbitMQ - Hello World Example
Apache Camel Tutorial - Idempotent Consumer using MemoryIdempotentRepository and FileIdempotentRepository
Spring Boot + Apache Camel JDBC component + MySQL - Hello World Example
Spring Boot + Apache Camel SQL component + MySQL - Hello World Example
Spring Boot + Apache Camel SQL component + Transaction Management Example

Lets Begin

The project in the previous Apache Camel Exception Handling will be the starting point.

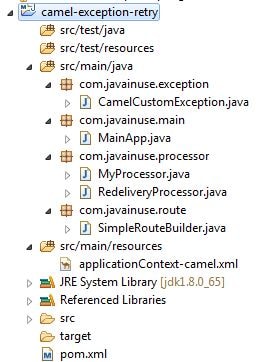

The project structure will be as follows-


We modify the MyProcessor as follows. We check if the input contains the text "test", then an exception is thrown.

package com.javainuse.processor;

import org.apache.camel.Exchange;
import org.apache.camel.Processor;
import com.javainuse.exception.CamelCustomException;

public class MyProcessor implements Processor {

    public void process(Exchange exchange) throws Exception {
        String a = exchange.getIn().getBody(String.class);
        System.out.println("hello " + a);
        if (a.equalsIgnoreCase("test"))
            throw new CamelCustomException();
    }

}

Our SimpleRoutebuilder class is as before-

package com.javainuse.route;

import org.apache.camel.Exchange;
import org.apache.camel.Processor;
import org.apache.camel.builder.RouteBuilder;
import com.javainuse.exception.CamelCustomException;
import com.javainuse.processor.MyProcessor;

public class SimpleRouteBuilder extends RouteBuilder {

    @Override
    public void configure() throws Exception {

        onException(CamelCustomException.class).process(new Processor() {

            public void process(Exchange exchange) throws Exception {
                System.out.println("handling ex");
            }
        }).log("Received body ").handled(true);

        from("file:C:/inputFolder?noop=true").process(new MyProcessor()).to("file:C:/outputFolder");

    }

}

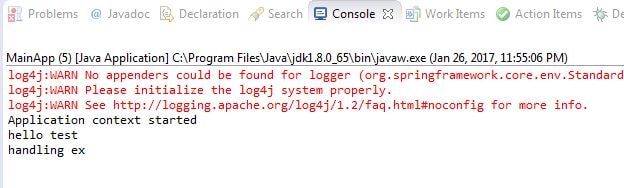

On running the MainApp.java we get the output as follows-


So after the exception is thrown it is caught by the MyException Block.
We will now define the redelivery policy. So now each message will be tried 5 times before being caught.

	<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:camel="http://camel.apache.org/schema/spring"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans.xsd
		http://camel.apache.org/schema/spring
		http://camel.apache.org/schema/spring/camel-spring.xsd">

	<bean id="routeBuilder" class="com.javainuse.route.SimpleRouteBuilder" />

	<camelContext xmlns="http://camel.apache.org/schema/spring">
		<routeBuilder ref="routeBuilder" />
		<redeliveryPolicyProfile id="testRedeliveryPolicyProfile"
			retryAttemptedLogLevel="WARN" maximumRedeliveries="5"
			redeliveryDelay="5" />
	</camelContext>
</beans>


Next configure the defined redelivery policy in our route.

package com.javainuse.route;

import org.apache.camel.Exchange;
import org.apache.camel.Processor;
import org.apache.camel.builder.RouteBuilder;
import com.javainuse.exception.CamelCustomException;
import com.javainuse.processor.MyProcessor;

public class SimpleRouteBuilder extends RouteBuilder {

    @Override
    public void configure() throws Exception {

        onException(CamelCustomException.class).process(new Processor() {

            public void process(Exchange exchange) throws Exception {
                System.out.println("handling ex");
            }
        }).redeliveryPolicyRef("testRedeliveryPolicyProfile").log("Received body ").handled(true);

        from("file:C:/inputFolder?noop=true").process(new MyProcessor()).to("file:C:/outputFolder");

    }

}

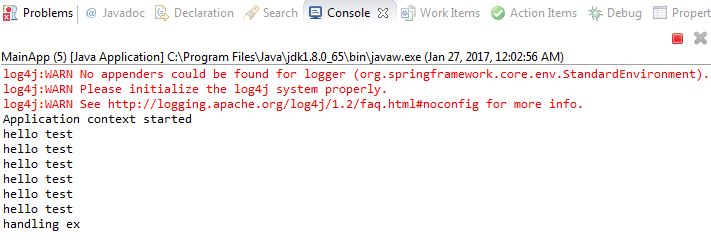

On running this the message gets retried 5 times when the exception occurs and after these attempts are exhausted it is finally caught by the catch block.


Next we may want in some cases to correct some data if the exception is thrown first time and before the first redelivery attempt is made. For this make use of onRedelivery processor. Define the MyRedelivery processor which corrects the data before the first redelivery attempt.

package com.javainuse.processor;

import org.apache.camel.Exchange;
import org.apache.camel.Processor;

public class RedeliveryProcessor implements Processor {

    public void process(Exchange exchange) throws Exception {
        exchange.getIn().setBody("test1");
    }

}

Next in the route we configure the onRedelivery processor.

package com.javainuse.route;

import org.apache.camel.Exchange;
import org.apache.camel.Processor;
import org.apache.camel.builder.RouteBuilder;
import com.javainuse.exception.CamelCustomException;
import com.javainuse.processor.MyProcessor;
import com.javainuse.processor.RedeliveryProcessor;

public class SimpleRouteBuilder extends RouteBuilder {

    @Override
    public void configure() throws Exception {

        onException(CamelCustomException.class).process(new Processor() {

            public void process(Exchange exchange) throws Exception {
                System.out.println("handling ex");
            }
        }).onRedelivery(new RedeliveryProcessor()).redeliveryPolicyRef("testRedeliveryPolicyProfile")
            .log("Received body ").handled(true);

        from("file:C:/inputFolder?noop=true").process(new MyProcessor()).to("file:C:/outputFolder");

    }

}

In the Redelivery Policy bean we have changed the exchange data so the exception will not thrown again.

Download Source Code

Download it - Apache Camel Retry Policy Example Example
