Spring Cloud- Netflix Zuul + Eureka Simple Example



In this post we implement Netflix Zuul example.
Zuul is the front door for all requests from devices and web sites to the backend of the Netflix streaming application. As an edge service application, Zuul is built to enable dynamic routing, monitoring, resiliency and security.

Spring Cloud - Table Of Contents

Microservice Registration and Discovery with Spring cloud using Netflix Eureka- Part 1. Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 2. Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 3. Microservice Registration and Discovery with Spring cloud using Netflix Eureka - Part 4. Spring Cloud- Netflix Eureka + Ribbon Simple Example Spring Cloud- Netflix Eureka + Ribbon + Hystrix Fallback Simple Example Spring Cloud- Netflix Hystrix Circuit Breaker Simple Example Spring Cloud- Netflix Feign REST Client Simple Example Spring Cloud- Netflix Zuul +Eureka Simple Example Spring Cloud Config Server using Native Mode Simple Example Spring Cloud Config Server Using Git Simple Example Spring Boot Admin Simple Example Spring Cloud Stream Tutorial - Publish Message to RabbitMQ Simple Example Spring Cloud Stream Tutorial - Consume Message from RabbitMQ Simple Example Spring Cloud Tutorial - Publish Events Using Spring Cloud Bus Spring Cloud Tutorial - Stream Processing Using Spring Cloud Data Flow

Video

This tutorial is explained in the below Youtube Video.

What is the Netflix Zuul? Need for it?

Zuul is a JVM based router and server side load balancer by Netflix.
It provides a single entry to our system, which allows a browser, mobile app, or other user interface to consume services from multiple hosts without managing cross-origin resource sharing (CORS) and authentication for each one. We can integrate Zuul with other Netflix projects like Hystrix for fault tolerance and Eureka for service discovery, or use it to manage routing rules, filters, and load balancing across your system.

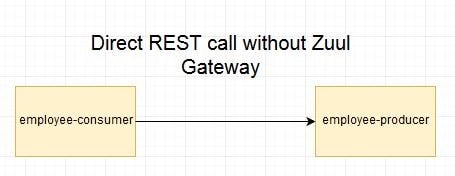

  • Microservice call without Netflix Zuul
  • Microservice call with Netflix Zuul
  • Microservice call with Netflix Zuul + Netflix Eureka

Lets Begin-

We will be creating four modules as shown in above diagram.
  • employee consumer
  • employee producer
  • Eureka Server
  • employee-zuul-service
Of these modules there will be no change in the employee-producer and Eureka Server code we had developed in the Netflix Eureka Tutorial. We will be creating a new module employee-zuul-service and modifying the employee-consumer module code developed in the Netflix Eureka Tutorial.
  • Zuul Gateway

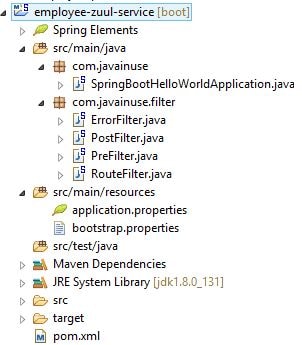

    The project structure for this module will be as follows-
    The pom.xml will be as follows with the zuul dependency.
    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>

    	<groupId>com.javainuse</groupId>
    	<artifactId>employee-zuul-service</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<packaging>jar</packaging>

    	<name>SpringBootHelloWorld</name>
    	<description>Demo project for Spring Boot</description>

    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>1.4.1.RELEASE</version>
    		<relativePath /> <!-- lookup parent from repository -->
    	</parent>

    	<properties>
    		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    		<java.version>1.8</java.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-web</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-zuul</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.cloud</groupId>
    			<artifactId>spring-cloud-starter-eureka</artifactId>
    		</dependency>

    	</dependencies>

    	<dependencyManagement>
    		<dependencies>
    			<dependency>
    				<groupId>org.springframework.cloud</groupId>
    				<artifactId>spring-cloud-dependencies</artifactId>
    				<version>Camden.SR6</version>
    				<type>pom</type>
    				<scope>import</scope>
    			</dependency>
    		</dependencies>
    	</dependencyManagement>


    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>

    </project>

    Next define the following properties in application.properties-
    zuul.routes.producer.url=http://localhost:8080
    eureka.client.serviceUrl.defaultZone=http://localhost:8090/eureka
    server.port=8079

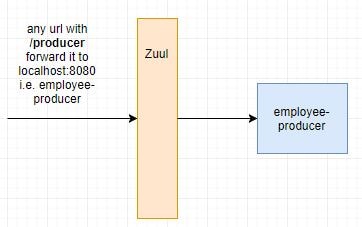

    Here zuul.routes.producer.url will route incoming traffic to request for /producer to the employee-producer microservice. Similar routes can be added for other microservices as well.

    Next name the application module in the bootstrap.properties file
    spring.application.name=employee-zuul-service


    Next we define the 4 types of filters supported by Zuul-
    • pre
    • post
    • route
    • error
    Define the ErrorFilter as follows-
    package com.javainuse.filter;

    import com.netflix.zuul.ZuulFilter;

    public class ErrorFilter extends ZuulFilter {

    	@Override
    	public String filterType() {
    		return "error";
    	}

    	@Override
    	public int filterOrder() {
    		return 0;
    	}

    	@Override
    	public boolean shouldFilter() {
    		return true;
    	}

    	@Override
    	public Object run() {
    		System.out.println("Using Route Filter");

    		return null;
    	}

    }

    Define the PostFilter as follows-
    package com.javainuse.filter;

    import com.netflix.zuul.ZuulFilter;

    public class PostFilter extends ZuulFilter {

    	@Override
    	public String filterType() {
    		return "post";
    	}

    	@Override
    	public int filterOrder() {
    		return 0;
    	}

    	@Override
    	public boolean shouldFilter() {
    		return true;
    	}

    	@Override
    	public Object run() {
    		System.out.println("Using Post Filter");

    		return null;
    	}

    }

    Define the PreFilter as follows-
    package com.javainuse.filter;

    import javax.servlet.http.HttpServletRequest;

    import com.netflix.zuul.ZuulFilter;
    import com.netflix.zuul.context.RequestContext;

    public class PreFilter extends ZuulFilter {

    	@Override
    	public String filterType() {
    		return "pre";
    	}

    	@Override
    	public int filterOrder() {
    		return 0;
    	}

    	@Override
    	public boolean shouldFilter() {
    		return true;
    	}

    	@Override
    	public Object run() {
    		RequestContext ctx = RequestContext.getCurrentContext();
    		HttpServletRequest request = ctx.getRequest();

    		System.out.println(
    				"Request Method : " + request.getMethod() + " Request URL : " + request.getRequestURL().toString());

    		return null;
    	}

    }

    Define the RouteFilter as follows-
    package com.javainuse.filter;

    import com.netflix.zuul.ZuulFilter;

    public class RouteFilter extends ZuulFilter {

    	@Override
    	public String filterType() {
    		return "route";
    	}

    	@Override
    	public int filterOrder() {
    		return 0;
    	}

    	@Override
    	public boolean shouldFilter() {
    		return true;
    	}

    	@Override
    	public Object run() {
    		System.out.println("Using Route Filter");

    		return null;
    	}

    }

    Finally we annotate the Spring Boot Main class with @EnableZuulProxy.With this the module will act as a service proxy or gateway.
    Also we create the beans for the filters defined above.
    package com.javainuse;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
    import org.springframework.cloud.netflix.zuul.EnableZuulProxy;
    import org.springframework.context.annotation.Bean;

    import com.javainuse.filter.ErrorFilter;
    import com.javainuse.filter.PostFilter;
    import com.javainuse.filter.PreFilter;
    import com.javainuse.filter.RouteFilter;

    @SpringBootApplication
    @EnableDiscoveryClient
    @EnableZuulProxy
    public class SpringBootHelloWorldApplication {

    	public static void main(String[] args) {
    		SpringApplication.run(SpringBootHelloWorldApplication.class, args);
    	}

    	@Bean
    	public PreFilter preFilter() {
    		return new PreFilter();
    	}

    	@Bean
    	public PostFilter postFilter() {
    		return new PostFilter();
    	}

    	@Bean
    	public ErrorFilter errorFilter() {
    		return new ErrorFilter();
    	}

    	@Bean
    	public RouteFilter routeFilter() {
    		return new RouteFilter();
    	}
    }

  • Code changes for employee-consumer

    The changes we make for the consumer module are
    • We fetch the Zuul Service instance instead of the the Employee Producer service we were doing earlier.
      So in code we have discoveryClient.getInstances("EMPLOYEE-ZUUL-SERVICE") instead of discoveryClient.getInstances("EMPLOYEE-PRODUCER")
    • Append the URL to be hit with /producer since we have defined so in the applicatio.properties above.
      baseUrl = baseUrl + "/producer/employee"
    package com.javainuse.controllers;

    import java.io.IOException;
    import java.util.List;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.cloud.client.ServiceInstance;
    import org.springframework.cloud.client.discovery.DiscoveryClient;
    import org.springframework.http.HttpEntity;
    import org.springframework.http.HttpHeaders;
    import org.springframework.http.HttpMethod;
    import org.springframework.http.MediaType;
    import org.springframework.http.ResponseEntity;
    import org.springframework.stereotype.Controller;
    import org.springframework.web.client.RestClientException;
    import org.springframework.web.client.RestTemplate;

    @Controller
    public class ConsumerControllerClient {

    	@Autowired
    	private DiscoveryClient discoveryClient;

    	public void getEmployee() throws RestClientException, IOException {

    		List<ServiceInstance> instances = discoveryClient.getInstances("EMPLOYEE-ZUUL-SERVICE");
    		ServiceInstance serviceInstance = instances.get(0);

    		String baseUrl = serviceInstance.getUri().toString();

    		baseUrl = baseUrl + "/producer/employee";

    		RestTemplate restTemplate = new RestTemplate();
    		ResponseEntity<String> response = null;
    		try {
    			response = restTemplate.exchange(baseUrl, HttpMethod.GET, getHeaders(), String.class);
    		} catch (Exception ex) {
    			System.out.println(ex);
    		}
    		System.out.println(response.getBody());
    	}

    	private static HttpEntity<?> getHeaders() throws IOException {
    		HttpHeaders headers = new HttpHeaders();
    		headers.set("Accept", MediaType.APPLICATION_JSON_VALUE);
    		return new HttpEntity<>(headers);
    	}
    }

As we had done in previous posts- Start the following Spring Boot Applications-
  • eureka-server
  • employee-producer
  • employee-zuul-service
  • employee-consumer

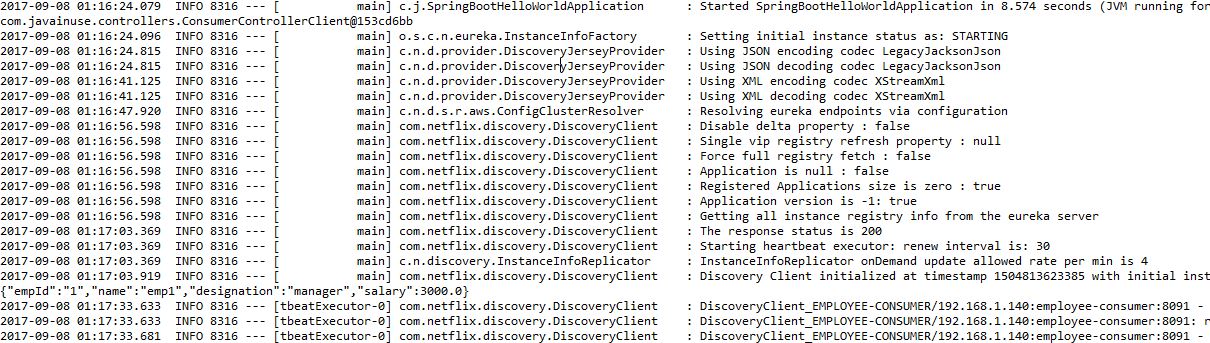

On running the employee-consumer we get the output as follows-

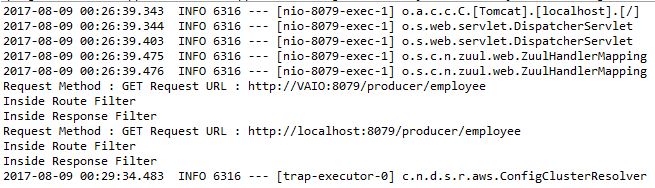

The Zuul console output is as follows-
So the filters defined in the zuul gateway get executed.

Download Source Code

Download it -
Employee Producer Service for Zuul
Eureka Server Service for Zuul
Eureka Consumer Service for Zuul
Employee Zuul Service
