Spring Boot + Kubernetes Tutorial - Deploy Multiple Microservices Using ClusterIP Service

In previous tutorial we had created a service of type nodeport to access the kuberenetes deployed spring boot microservice named exployee-producer.
The REST endpoints exposed by the employee producer microservice we consumed by an external client using nodeport service.

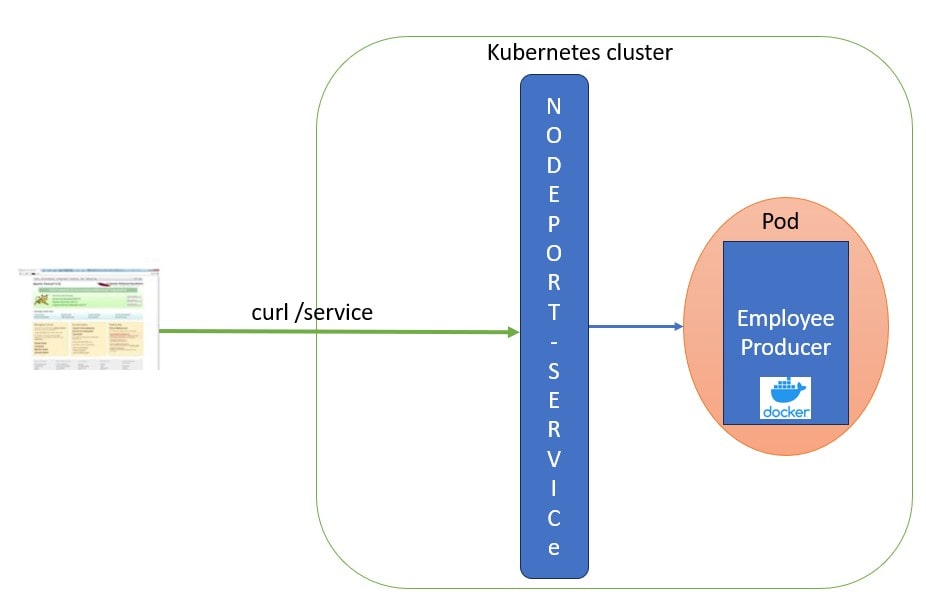

kubernetes NodePort architecture

In previous docker tutorial we had created docker images for the employee-producer and employee-consumer microservices.
sprcloud_1-5

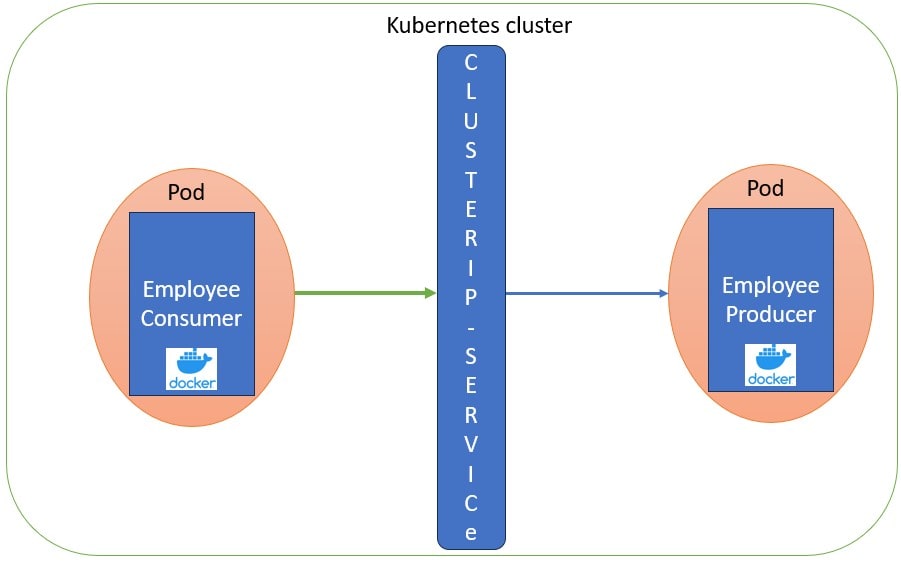

In this tutorial we will be creating the docker images for both the employee-producer and employee-consumer microservices. Then we will be deploying these images on minikube. Also in another previous tutorial we saw the different service types including clusterip which is used by internal cluster. In this tutorial we will be consuming the employee-producer microservice programatically using another microservice named employee-consumer using clusterip service type.
kubernetes NodePort architecture

Implementation

Start Minikube

minikube start --force

spring boot + minikube tutorial- minikube start

To use docker with minikube we will need to switch the docker context to using minikube.

eval $(minikube docker-env)

Deploy employee-producer application to kubernetes pod.

In previous tutorial, we had implemented examples for deploying spring boot applications to docker. In this tutorial series we had covered the basics of docker. We will be taking reference of the spring boot microservices to docker tutorial that we had implemented previously. We will be downloading the spring boot example we had implemented for this tutorial. The docker file used to create the docker image is as follows -

From openjdk:8
copy ./target/employee-producer-0.0.1-SNAPSHOT.jar employee-producer-0.0.1-SNAPSHOT.jar
CMD ["java","-jar","employee-producer-0.0.1-SNAPSHOT.jar"]

Import the spring boot project in eclipse. Build it using maven install, so that we have the jar file inside the target folder.

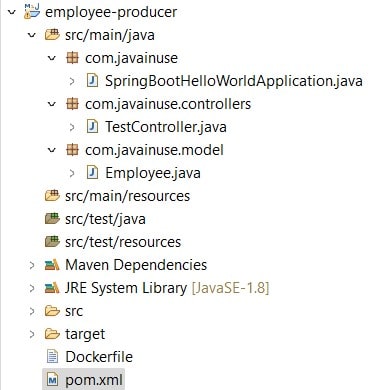

Spring boot Kubernetes example

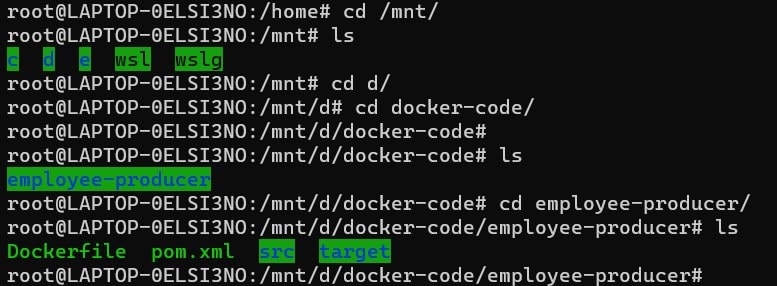

Open the ubuntu terminal that we had previously installed using WSL. Next we will navigate to the location where we have the spring boot project.
Ubuntu Spring boot Kubernetes example

Next we will build an image with the name employee-producer-kubernetes.

docker image build -t employee-producer-kubernetes .

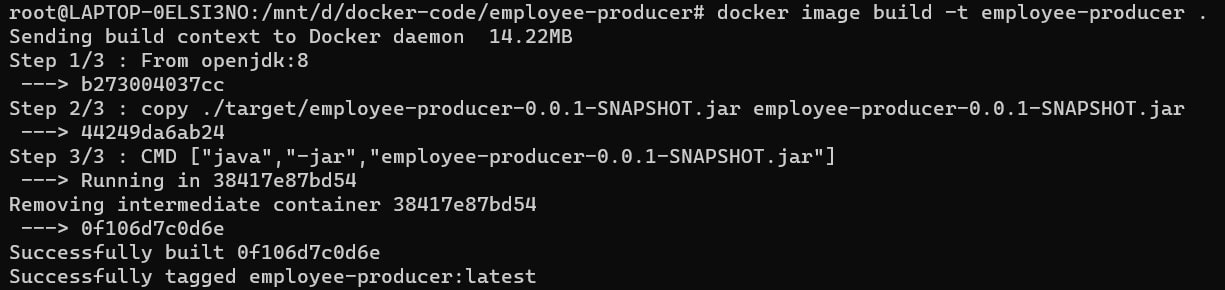

Spring boot Kubernetes example create docker image

If now list the available docker images, we can see that the new image has been created.

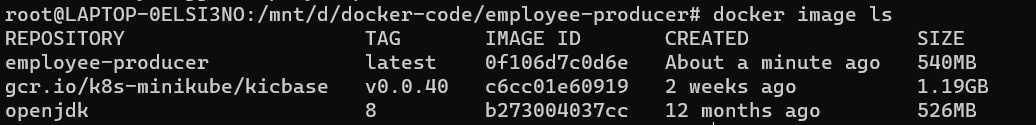

Spring boot Kubernetes list images

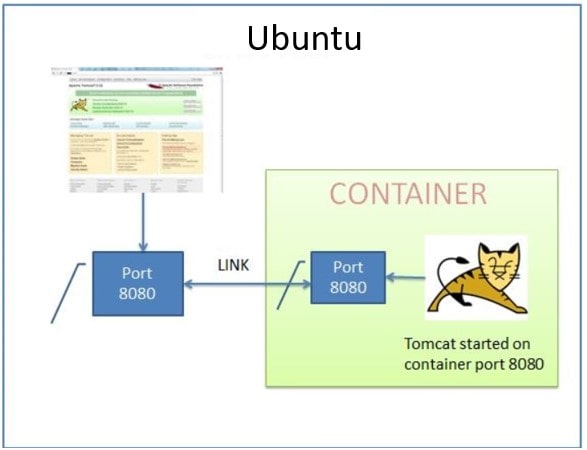

Next we will run the above image as a container. Also we will be publishing the docker port 8080 to centos port 8080.

docker container run --name producer -p 8080:8080 -d employee-producer-kubernetes

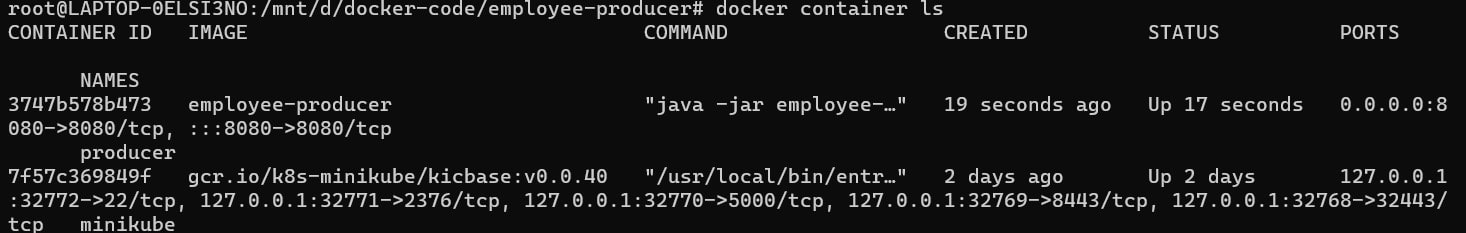

If now list the available docker containers, we can see that the new container has been created.
Spring boot Kubernetes list containers

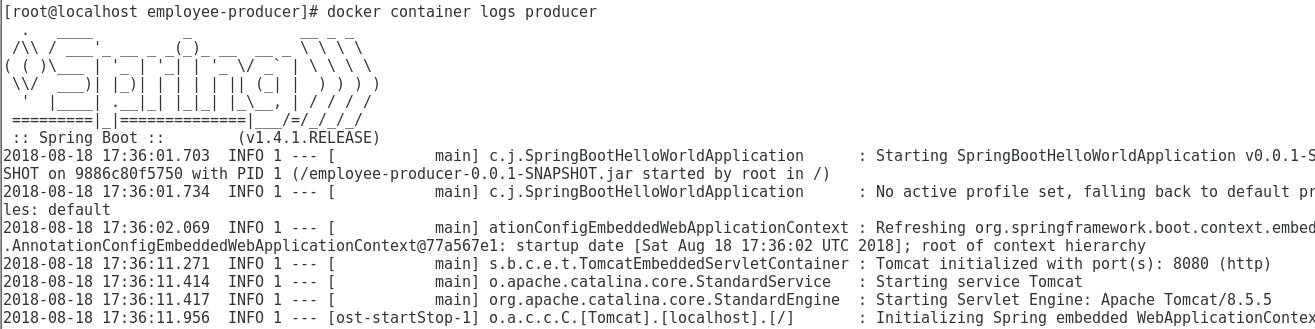

Here we have started the container with name as producer. Now using the following command check the logs

docker container logs producer

Now using curl we could test the application running in docker as follows-

curl localhost:8080/employee

Pass Docker Image to Kubernetes

The docker image can be passed to minikube in 2 ways-

Local docker image -

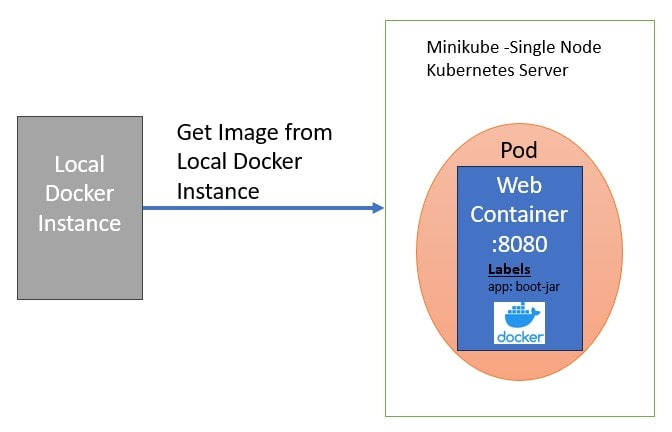

Minikube makes use of the locally created docker image. So if we run following command
```
docker image ls
```
We can see the image is present locally. This will be used by minikube to run containers using pods.

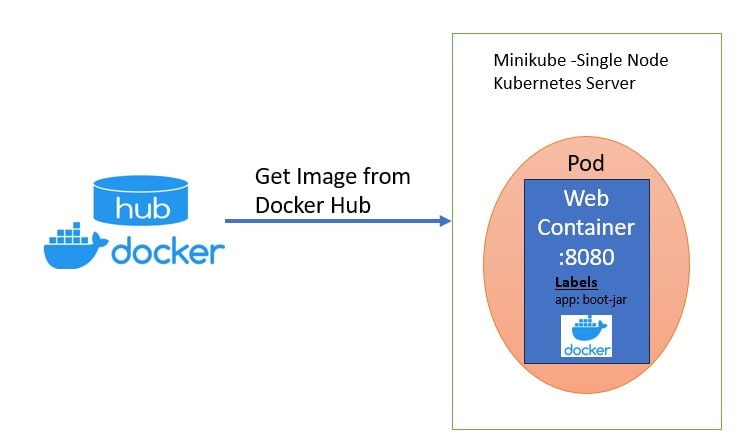

Image from docker hub -

In this case the image will be downloaded from docker hub which is central repository for docker images.
In previous docker tutorials we have already implemented examples for pushing images to docker hub. Using the terminal login to the docker hub account. It will ask for the dockerhub username and password.
```
docker login
```
Next we will push the image named employee-producer-kubernetes to docker hub using the following command.
```
docker image push employee-producer-kubernetes
```
But we get the following exception
This is because only official docker images can be in the above format with only the name. All other docker images should be in the format -
owner/docker-image-name So for this we will need to add the owner tag to the existing image that we want to push to docker hub.
```
docker image tag employee-producer-kubernetes javainuse/employee-producer-kubernetes
```
If we now list the docker images we see two docker images with same id.
```

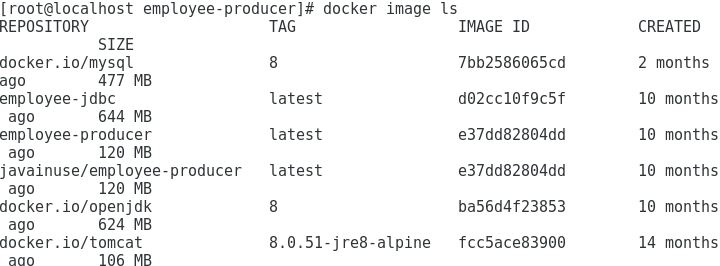

docker image ls
```
Create a pod configuration file named employee-producer-pod.yml as follows-
```
apiVersion: v1
kind: Pod
metadata:
  name: employee-producer
  labels:
    app: employee-producer
spec:
  containers:
  - name: boot-jar-container
    image: javainuse/employee-producer-kubernetes:latest
```
Deploy the above configuration as follows-
```
kubectl apply -f employee-producer-pod.yml
```
This creates the pod named employee-producer

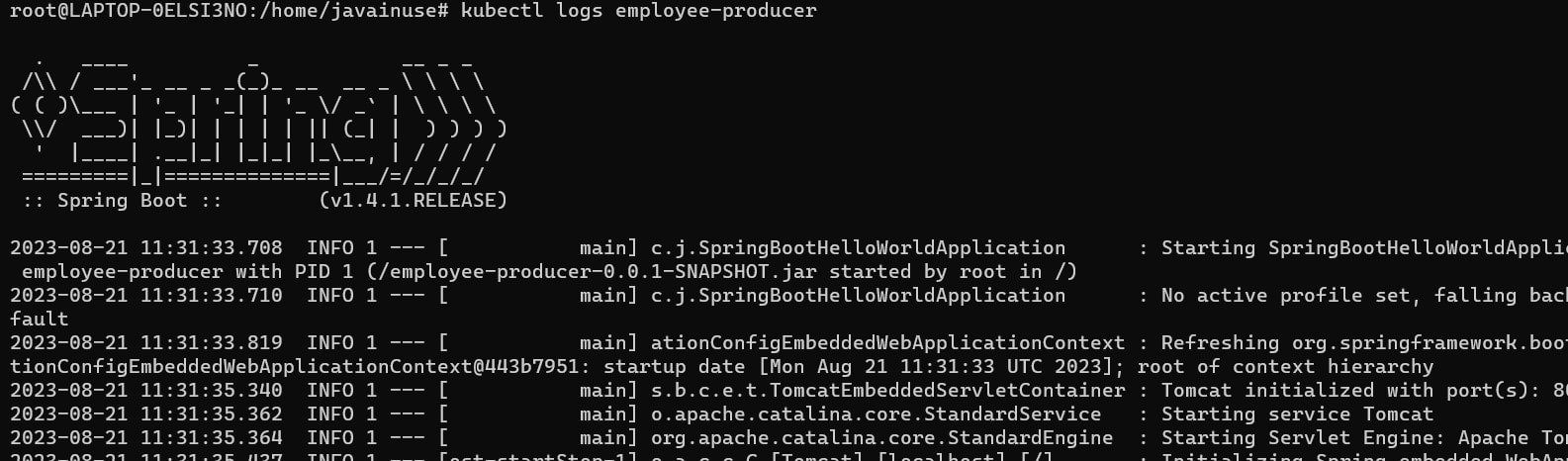

If we check the employee-producer pod logs, we can see that the application has started.

Create a new service of type cluserip to expose the employee-producer pod to kubernetes internal applications.
The ClusterIP service configuration to expose the employee producer microservice internally will be as follows-
```
apiVersion: v1
kind: Service
metadata:
  name: employee-producer-service
spec:
  selector:
    app: boot-jar
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080
  type: ClusterIP
```
This service file has the same selector tag as the label tag in pod configuration file. Deploy the service as follows-
```
kubectl apply -f clusterip-service.yml
```
This creates the service named employee-producer-service using which other internal applications can access the employee-producer pod.
Create and push the employee-producer image to dockerhub.
As we do not have the employee-consumer image in repository in dockerhub we will need to create and push the image to dockerhub. In previous docker tutorial we had created an image for spring boot consumer service. We will be making use of this project to consume the REST endpoints exposed by employee-producer. The project makes use of RestTemplate to call and consume the exposed ClusterIP service using the service name of the deployed clusterip service.
```
package com.javainuse.controllers;

import java.io.IOException;
import org.springframework.http.HttpEntity;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpMethod;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.client.RestClientException;
import org.springframework.web.client.RestTemplate;

public class ConsumerControllerClient {

	public void getEmployee() throws RestClientException, IOException {

		String baseUrl = "http://employee-producer-service:8080/employee";
		RestTemplate restTemplate = new RestTemplate();
		ResponseEntity<String> response=null;
		try{
		response=restTemplate.exchange(baseUrl,
				HttpMethod.GET, getHeaders(),String.class);
		}catch (Exception ex)
		{
			System.out.println(ex);
		}
		System.out.println(response.getBody());
	}

	private static HttpEntity<?> getHeaders() throws IOException {
		HttpHeaders headers = new HttpHeaders();
		headers.set("Accept", MediaType.APPLICATION_JSON_VALUE);
		return new HttpEntity<>(headers);
	}
}
```
Also this project has the docker file as follows-
```
From openjdk:8
copy ./target/employee-consumer-0.0.1-SNAPSHOT.jar employee-consumer-0.0.1-SNAPSHOT.jar
CMD ["java","-jar","employee-consumer-0.0.1-SNAPSHOT.jar"]
```
Let us create the image of the employee-consumer project and push it to the docker hub repository.
- Create the docker image as follows-
```

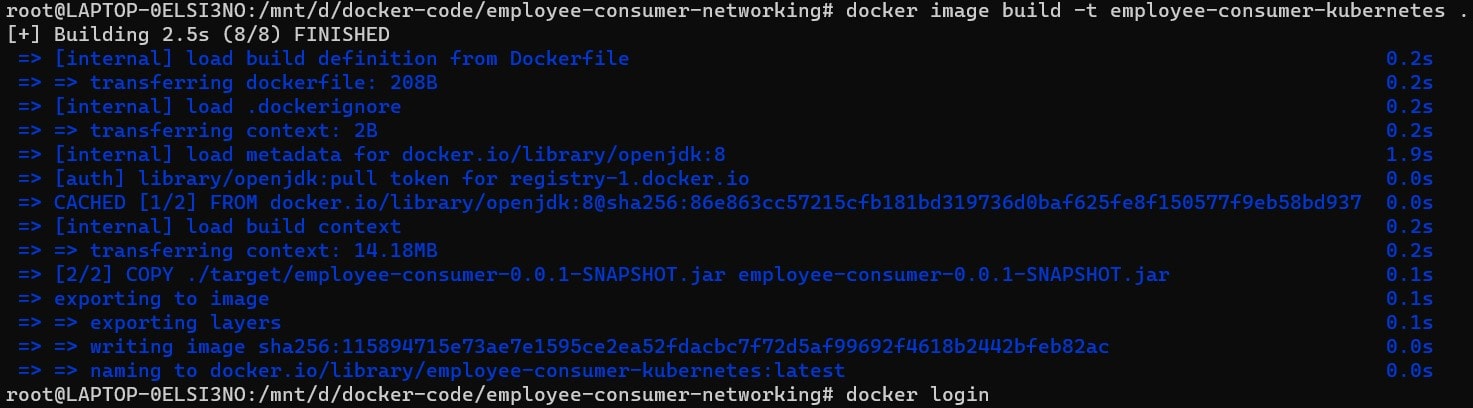

docker image build -t employee-consumer-kubernetes .
```
- Using the terminal login to the docker hub account. It will ask for the dockerhub username and password.
```

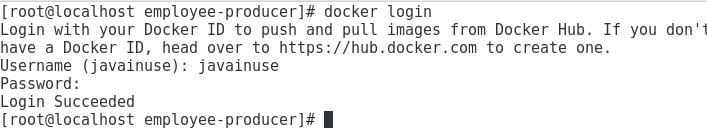

docker login
```
- Next we will push the image named employee-producer-kubernetes to docker hub using the following command.
```
docker image push employee-consumer-kubernetes
```
  But we get the following exception
- This is because only official docker images can be in the above format with only the name. All other docker images should be in the format -
  owner/docker-image-name So for this we will need to add the owner tag to the existing image that we want to push to docker hub.
```
docker image tag employee-consumer-kubernetes javainuse/employee-consumer-kubernetes
```
  If we now list the docker images we see two docker images with same id.
```
docker image ls
```
- We can now push the new image with javainuse tag as follows-
```

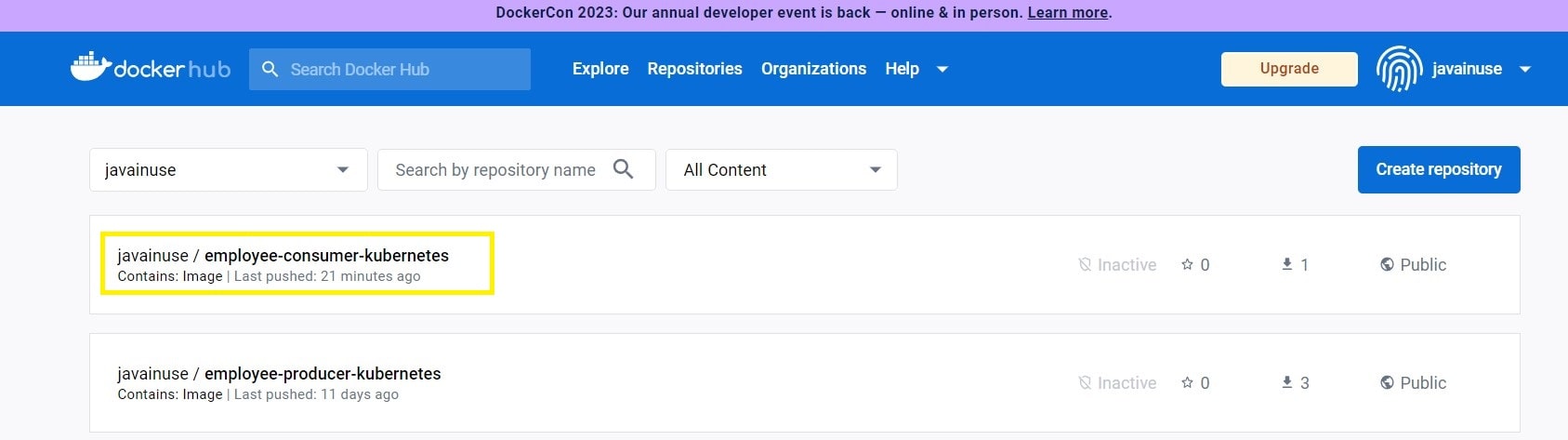

docker image push javainuse/employee-consumer-kubernetes
```
Deploy employee-consumer image to kubernetes pods
So now we have the employee consumer image in the docker hub repository.

Next we will be creating the pod configuration file named employee-consumer-pod.yml for deployment as follows-
```
apiVersion: v1
kind: Pod
metadata:
  name: employee-consumer
  labels:
    app: employee-consumer
spec:
  containers:
  - name: boot-consumer-container
    image: javainuse/employee-consumer-kubernetes:latest
```
Deploy the pod as follows-
```
kubectl apply -f employee-consumer-pod.yml
```
This creates the pod named employee-producer

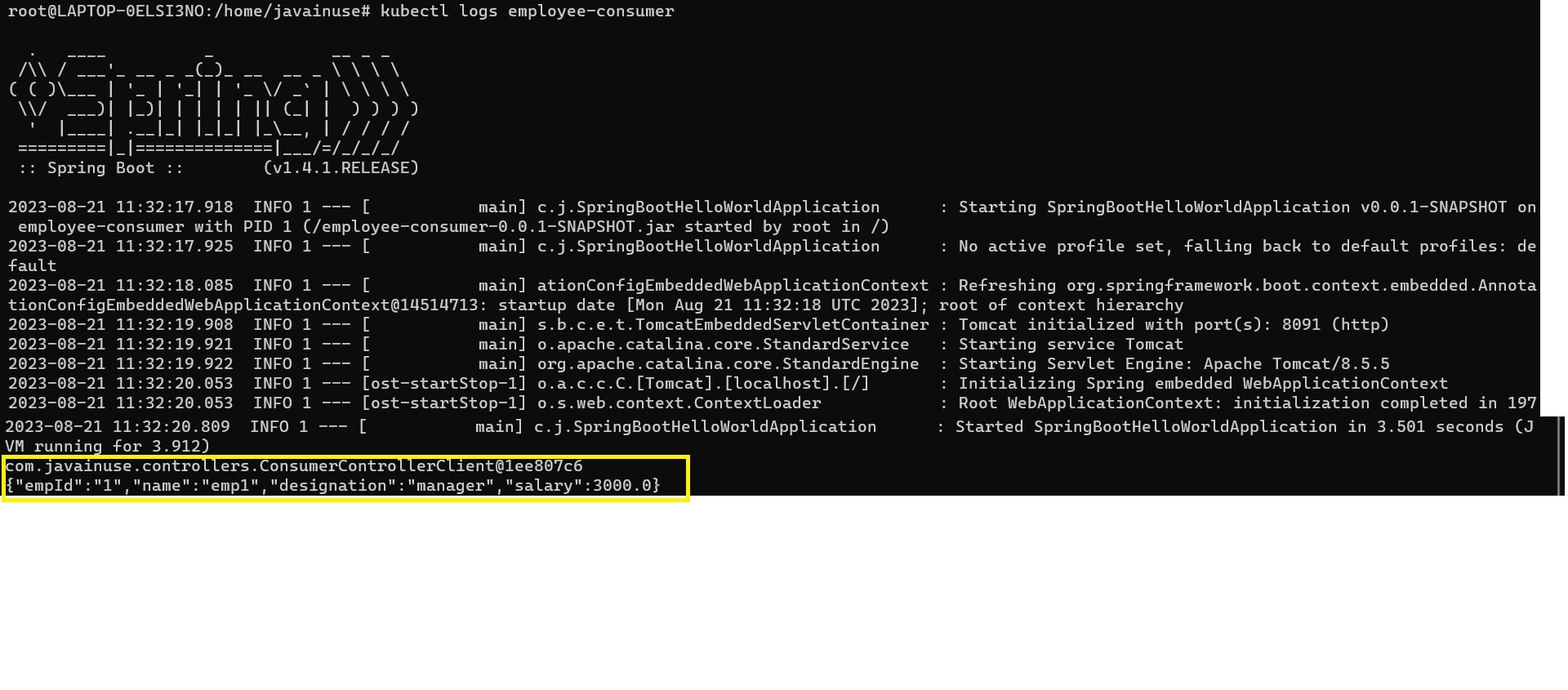

If we check the employee-consumer pod logs, we can see that the application has started and also it has programmatically consumed the REST endpoint.

If we check the employee-consumer logs, we can see that it has consumed the REST endpoints exposed by employee-producer.
