Secure Spring Boot Azure Web Application with Managed Identity Authentication + App Registration Example

In a previous tutorial we had deployed spring boot application as azure web application. We had also implemented a tutorial to secure the deployed azure web application using Azure AD.
In this tutorial we will be securing the deployed azure web application using app registration and managed identity. We will be creating spring boot projects - employee consumer and employee producer. The employee-producer exposes a GET rest endpoint which returns a json. The employee consumer consumes this json.

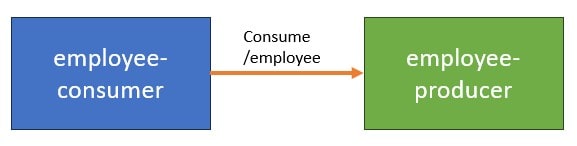

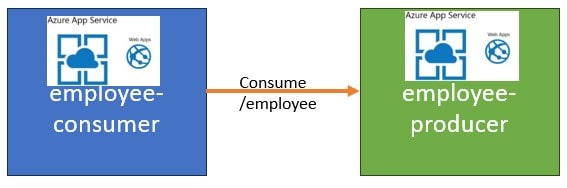

We will then be deploying the employee producer and employee consumer as azure web app services.

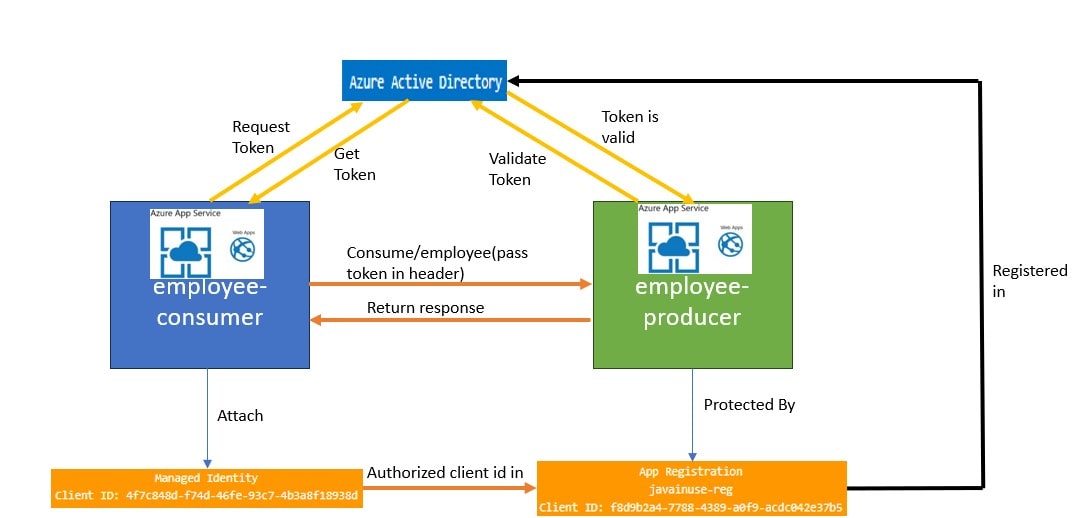

We will then be securing the deployed azure web app services using managed identity and azure app registration.

Implementation

Let us create spring boot maven project for employee-producer and employee-consumer.

employee-producer

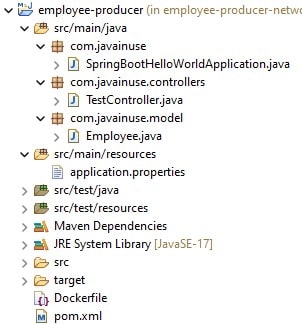

The maven project will be as follows-

The pom.xml will be as follows-

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.javainuse</groupId>
	<artifactId>employee-producer</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>3.4.2</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>17</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>


		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>

	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>

Create a model class named employee

package com.javainuse.model;

public class Employee {
	private String empId;
	private String name;
	private String designation;
	private double salary;

	public Employee() {
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public String getDesignation() {
		return designation;
	}

	public void setDesignation(String designation) {
		this.designation = designation;
	}

	public double getSalary() {
		return salary;
	}

	public void setSalary(double salary) {
		this.salary = salary;
	}

	public String getEmpId() {
		return empId;
	}

	public void setEmpId(String empId) {
		this.empId = empId;
	}

}

Create a controller class which exposes a GET REST endpoint and returns the employee json.

package com.javainuse.controllers;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import com.javainuse.model.Employee;

@RestController
public class TestController {

	@RequestMapping(value = "/employee", method = RequestMethod.GET)
	public Employee firstPage() {

		Employee emp = new Employee();
		emp.setName("emp1");
		emp.setDesignation("manager");
		emp.setEmpId("1");
		emp.setSalary(3000);

		return emp;
	}

}

Finally create the spring bootstrap class.

package com.javainuse;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootHelloWorldApplication {

	public static void main(String[] args) {
		SpringApplication.run(SpringBootHelloWorldApplication.class, args);
	}
}

We want to start this application on port 80.

server.port=80

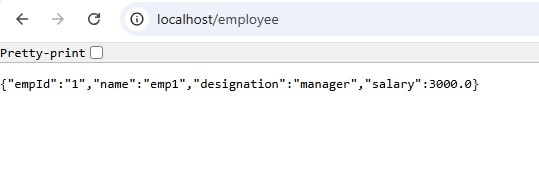

Start the spring boot application. If we now go to localhost/employee the employee json is returned as follows-

Employee Consumer

The maven project will be as follows-

The pom.xml will be as follows-

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.javainuse</groupId>
	<artifactId>employee-consumer</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>3.4.2</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>17</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>



	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>

Define a controller class which will consume the deployed employee-producer json.

package com.javainuse.controllers;

import java.io.IOException;
import org.springframework.http.HttpEntity;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpMethod;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestClientException;
import org.springframework.web.client.RestTemplate;

@RestController
public class ConsumerControllerClient {

	@RequestMapping(value = "/consume", method = RequestMethod.GET)
	public String getEmployee() throws RestClientException, IOException {

		String baseUrl = "http://localhost/employee";
		RestTemplate restTemplate = new RestTemplate();
		ResponseEntity<String> response=null;
		try{
		response=restTemplate.exchange(baseUrl,
				HttpMethod.GET, getHeaders(),String.class);
		}catch (Exception ex)
		{
			System.out.println(ex);
		}
		System.out.println(response.getBody());
		return response.getBody();
	}

	private static HttpEntity<?> getHeaders() throws IOException {
		HttpHeaders headers = new HttpHeaders();
		headers.set("Accept", MediaType.APPLICATION_JSON_VALUE);
		return new HttpEntity<>(headers);
	}
}

Define the spring bootstrap class as follows-

package com.javainuse;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootHelloWorldApplication {

	public static void main(String[] args) {
		SpringApplication.run(SpringBootHelloWorldApplication.class, args);
	}
}

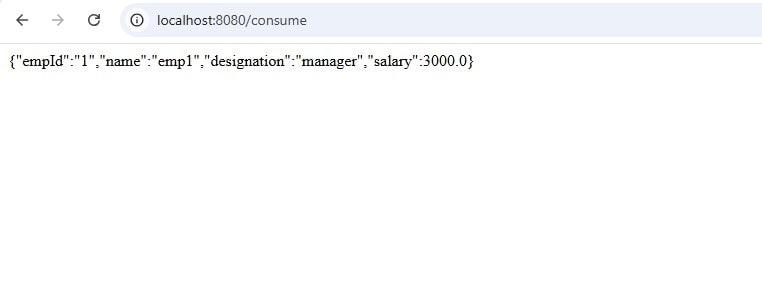

Start the application and call localhost:8080/consume. We get the output as

Deploy spring boot applications as azure webapps

Deploy employee-producer to azure web app

Create the docker file as follows-

# Stage 1: Build the application
FROM maven:3.8.3-openjdk-17-slim AS build
WORKDIR /home/app
COPY . /home/app
RUN mvn -f /home/app/pom.xml clean package

# Stage 2: Run the application
FROM openjdk:17-jdk-slim
COPY --from=build /home/app/target/*.jar /usr/local/lib/app.jar
EXPOSE 80
ENTRYPOINT ["java","-jar","/usr/local/lib/app.jar"]

Build Docker image

docker build -t javainuse-producer .

Login to azure portal

az login

Login to azure ACR

az acr login -n javainuseapp.azurecr.io

Tag image with ACR name

docker tag javainuse-producer javainuseapp.azurecr.io/javainuse-producer

Push image to ACR.

docker push javainuseapp.azurecr.io/javainuse-producer

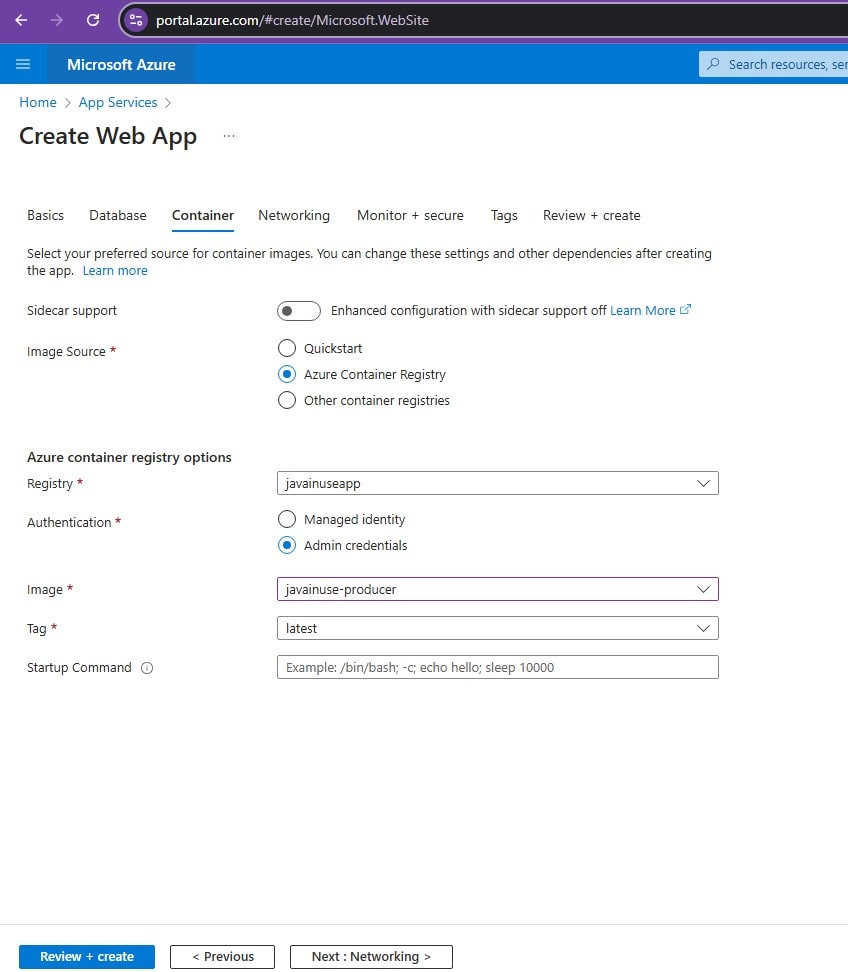

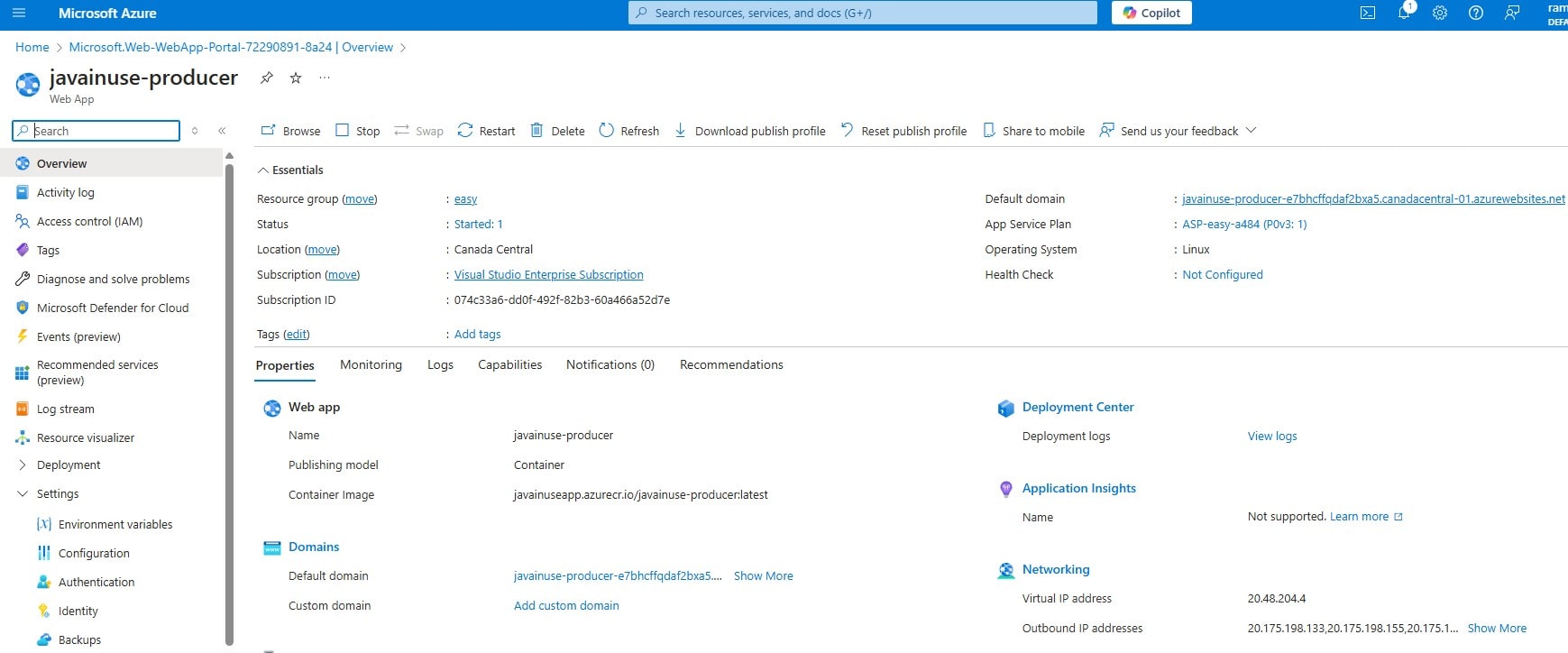

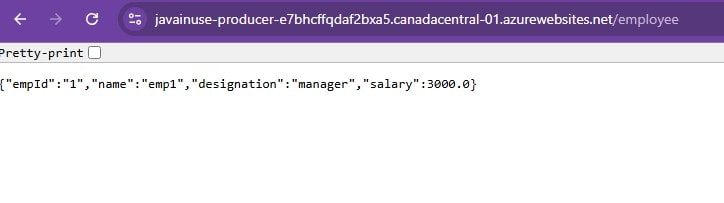

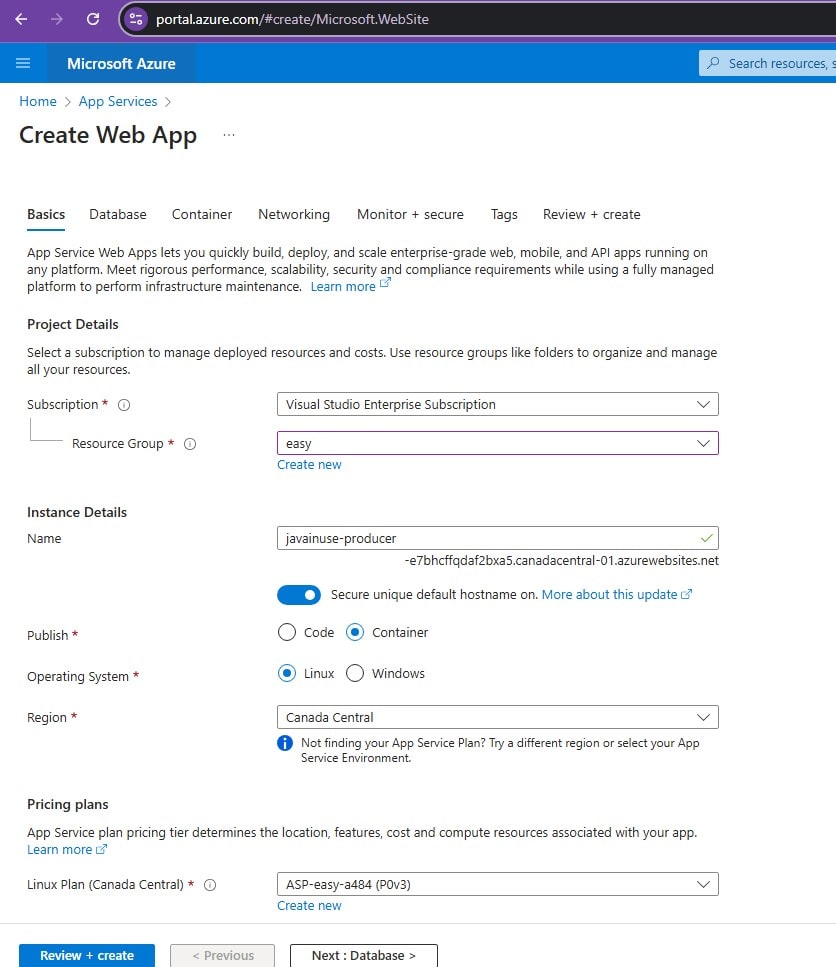

Go to azure portal and create azure web app.

Deploy employee-consumer to azure web app

For employee consumer we will be making in the controller class so that it consumes the azure web app deployed employee-producer service.

package com.javainuse.controllers;

import java.io.IOException;
import org.springframework.http.HttpEntity;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpMethod;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestClientException;
import org.springframework.web.client.RestTemplate;

@RestController
public class ConsumerControllerClient {

	@RequestMapping(value = "/consume", method = RequestMethod.GET)
	public String getEmployee() throws RestClientException, IOException {

		String baseUrl = "https://javainuse-producer-e7bhcffqdaf2bxa5.canadacentral-01.azurewebsites.net/employee";
		RestTemplate restTemplate = new RestTemplate();
		ResponseEntity<String> response=null;
		try{
		response=restTemplate.exchange(baseUrl,
				HttpMethod.GET, getHeaders(),String.class);
		}catch (Exception ex)
		{
			System.out.println(ex);
			return ex.toString();
		}
		System.out.println(response.getBody());
		return response.getBody();
	}

	private static HttpEntity<?> getHeaders() throws IOException {
		HttpHeaders headers = new HttpHeaders();
		headers.set("Accept", MediaType.APPLICATION_JSON_VALUE);
		return new HttpEntity<>(headers);
	}
}

Create the docker file as follows-

# Stage 1: Build the application
FROM maven:3.8.3-openjdk-17-slim AS build
WORKDIR /home/app
COPY . /home/app
RUN mvn -f /home/app/pom.xml clean package

# Stage 2: Run the application
FROM openjdk:17-jdk-slim
COPY --from=build /home/app/target/*.jar /usr/local/lib/app.jar
EXPOSE 80
ENTRYPOINT ["java","-jar","/usr/local/lib/app.jar"]

Build Docker image

docker build -t javainuse-consumer .

Login to azure portal

az login

Login to azure ACR

az acr login -n javainuseapp.azurecr.io

Tag image with ACR name

docker tag javainuse-consumer javainuseapp.azurecr.io/javainuse-consumer

Push image to ACR.

docker push javainuseapp.azurecr.io/javainuse-consumer

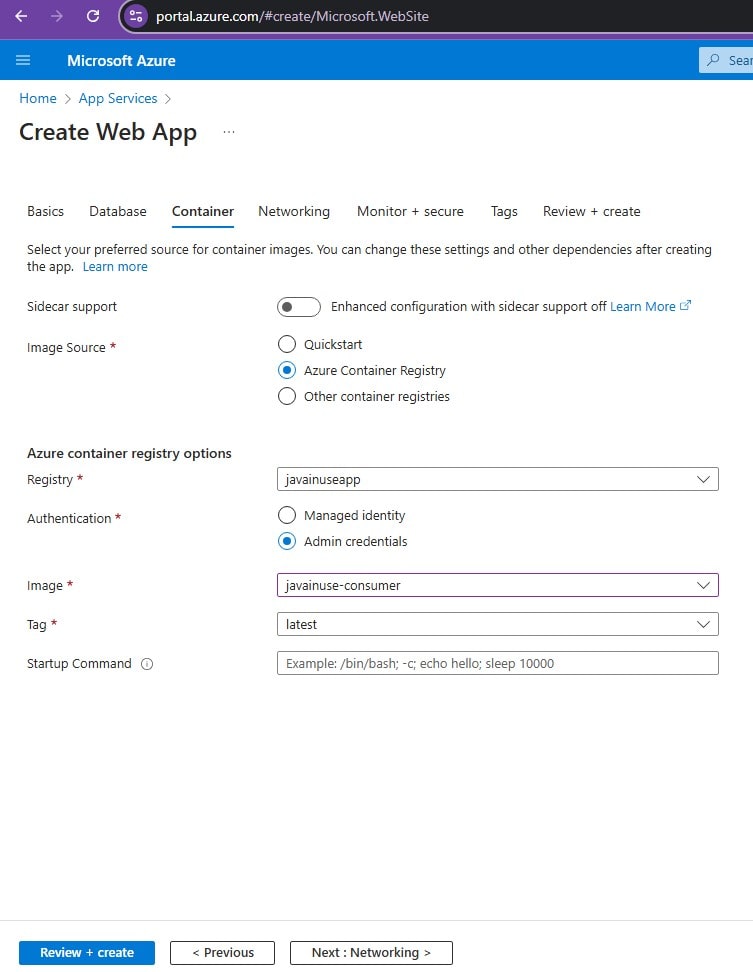

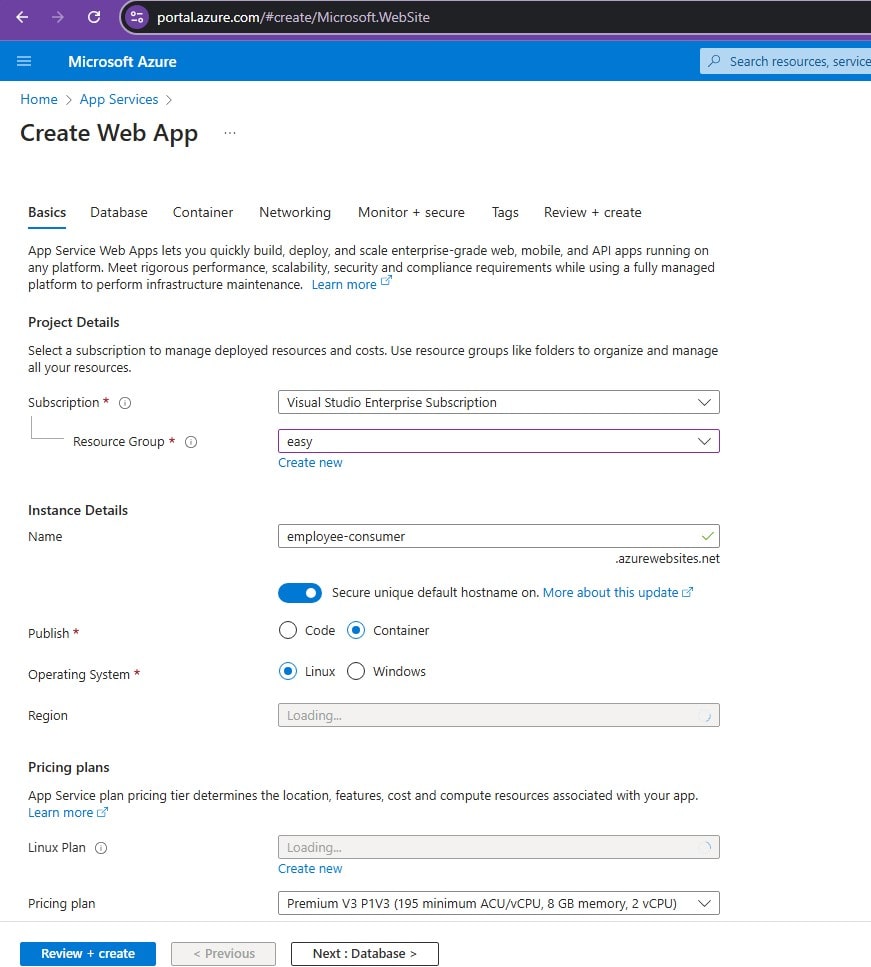

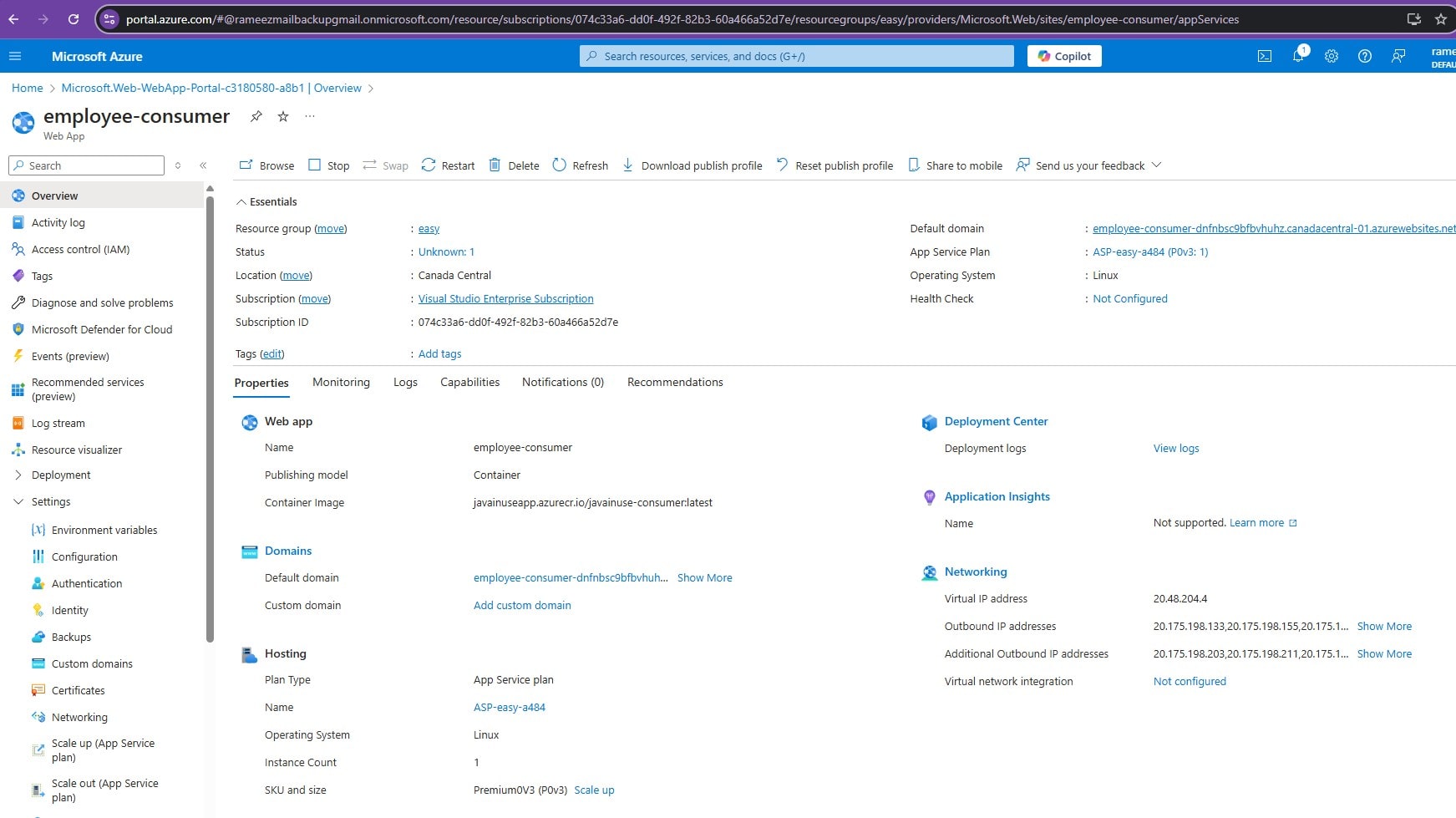

Go to azure portal and create azure web app.

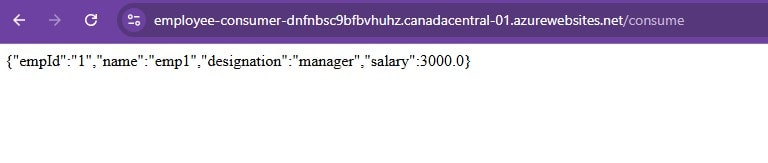

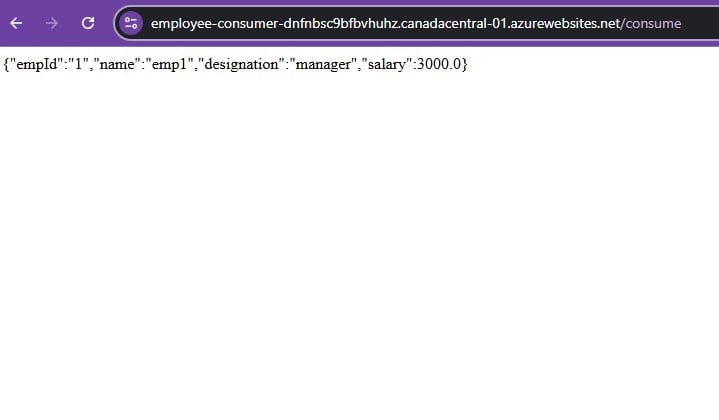

We get the output as follows

Add Authentication provider to employee producer

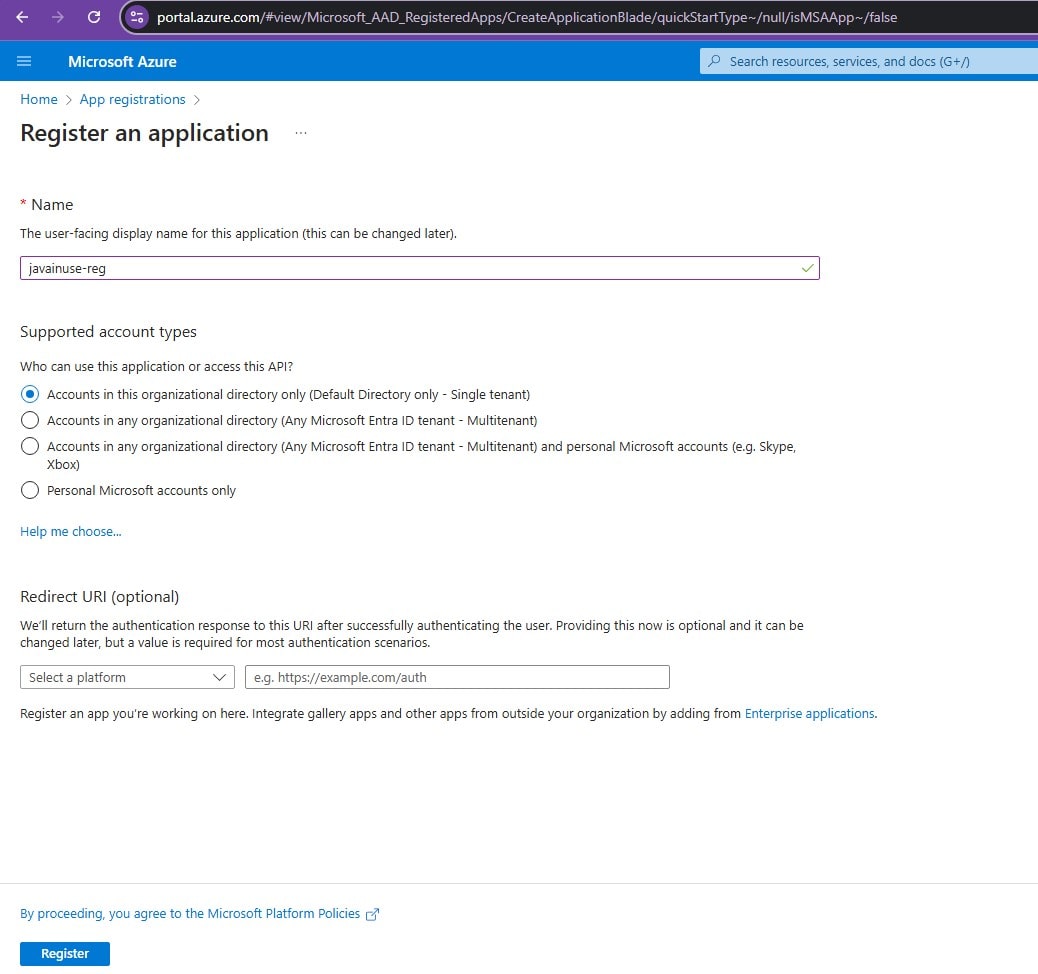

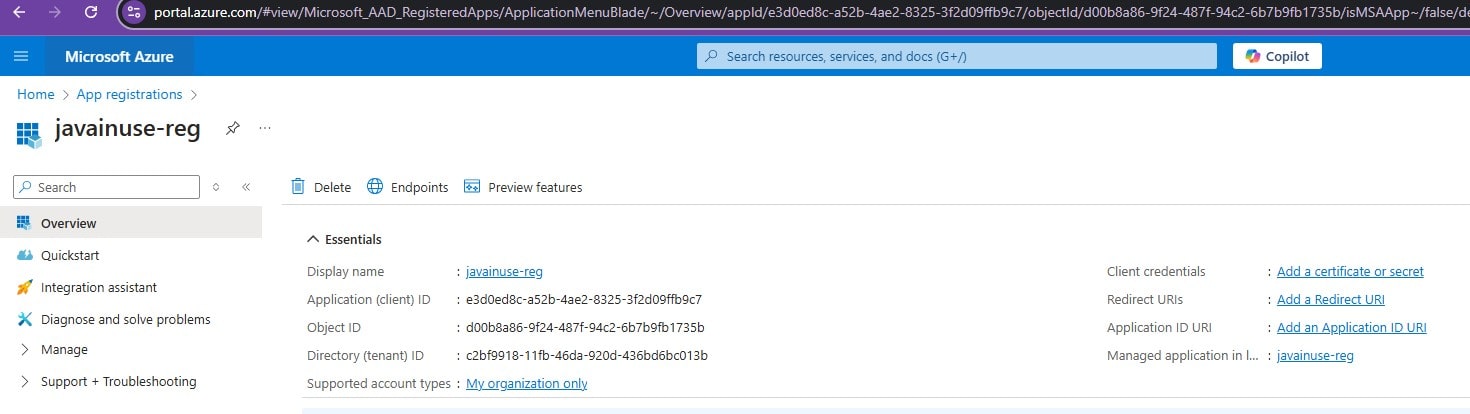

Create a new app registration in azure portal as follows-

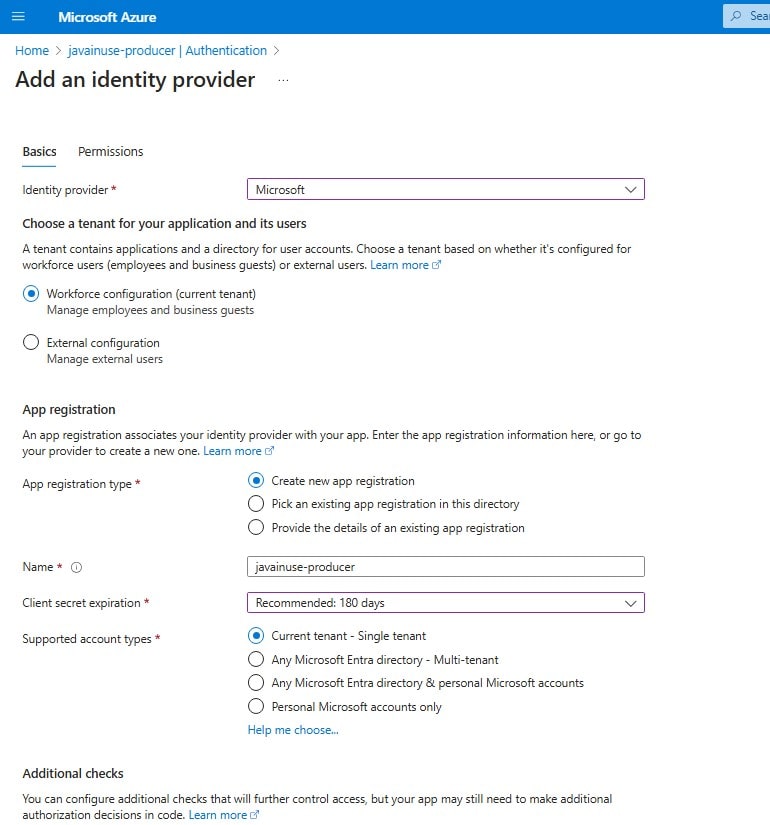

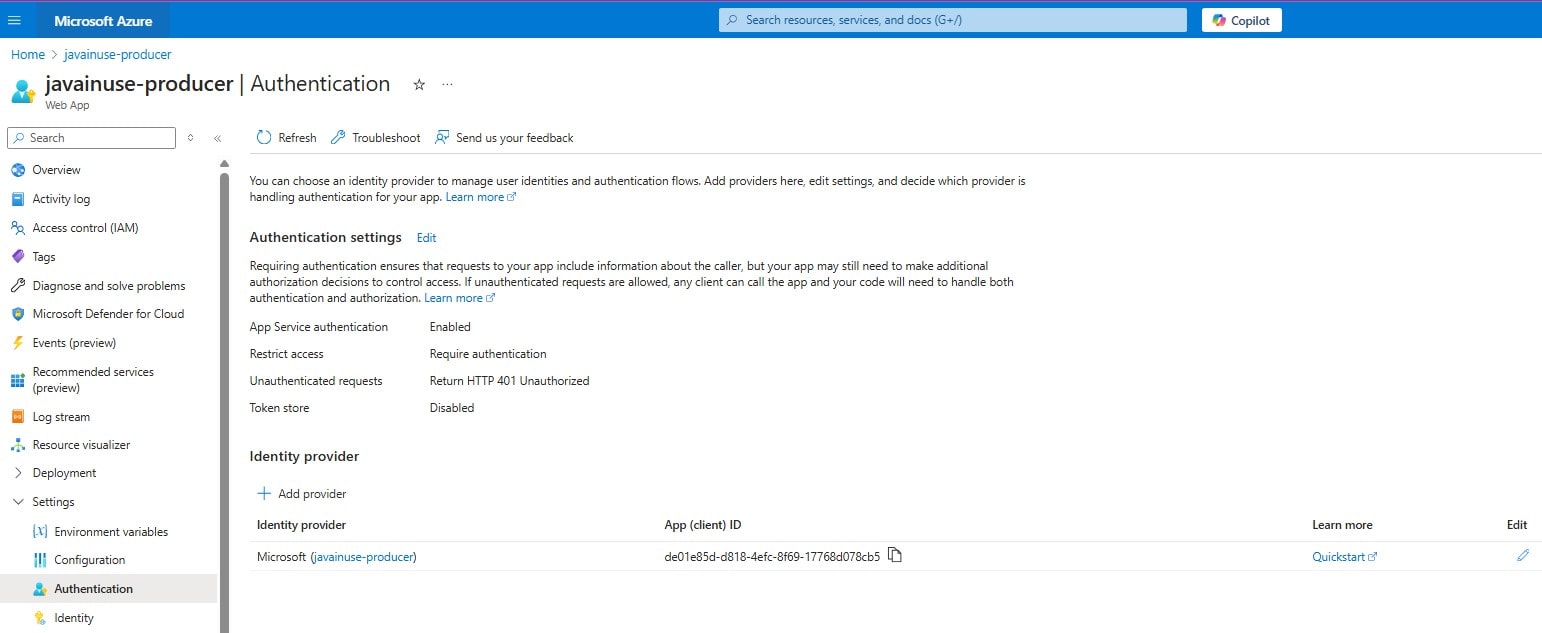

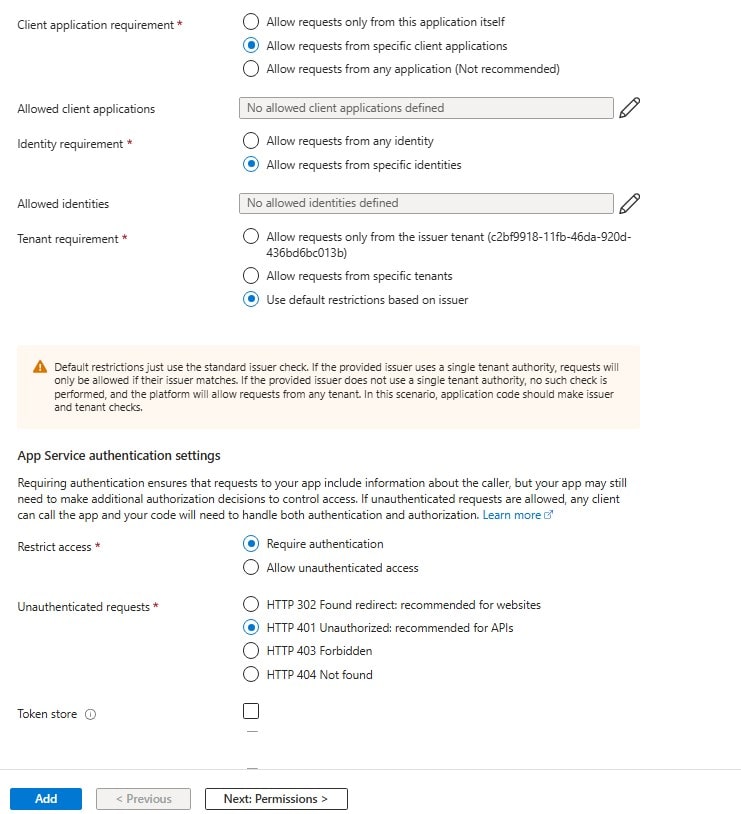

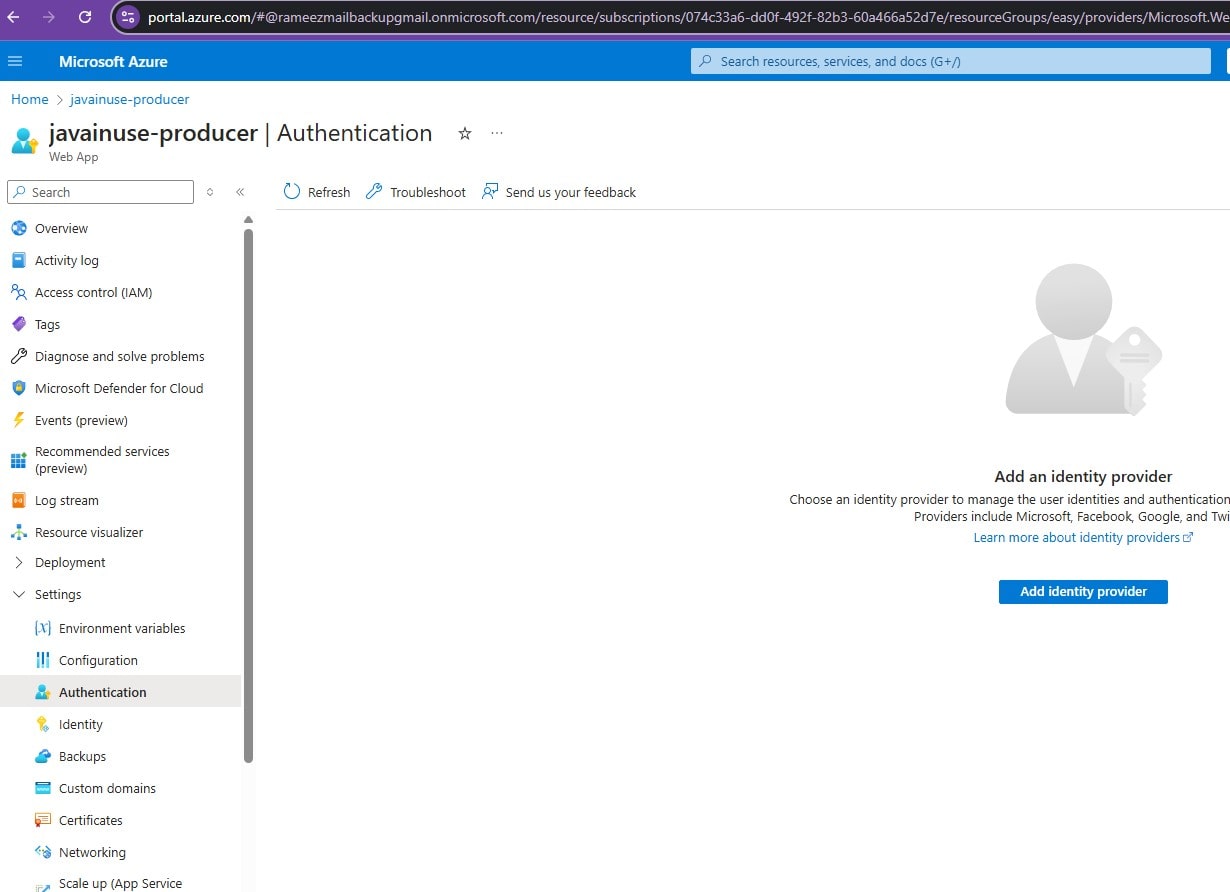

Next we attach this app registration to employee-producer. Go to Settings -> Authentication. Add new identity provider as follows. In this we add the app registration that we just created.

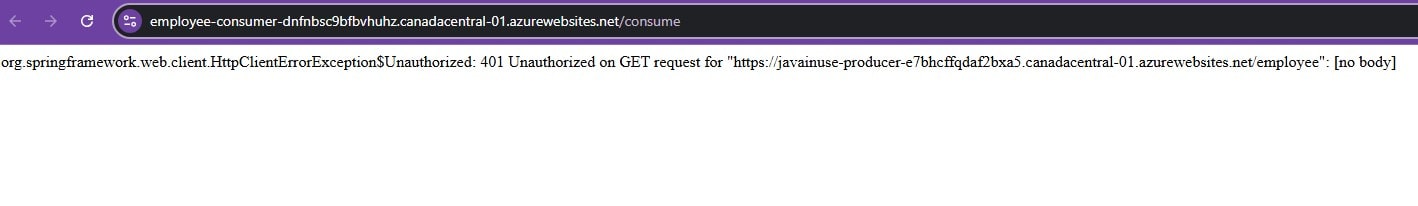

If we now try to access the employee producer using employee-consumer we get 401 error code.

Allow employee-consumer to access employee-producer using managed identity

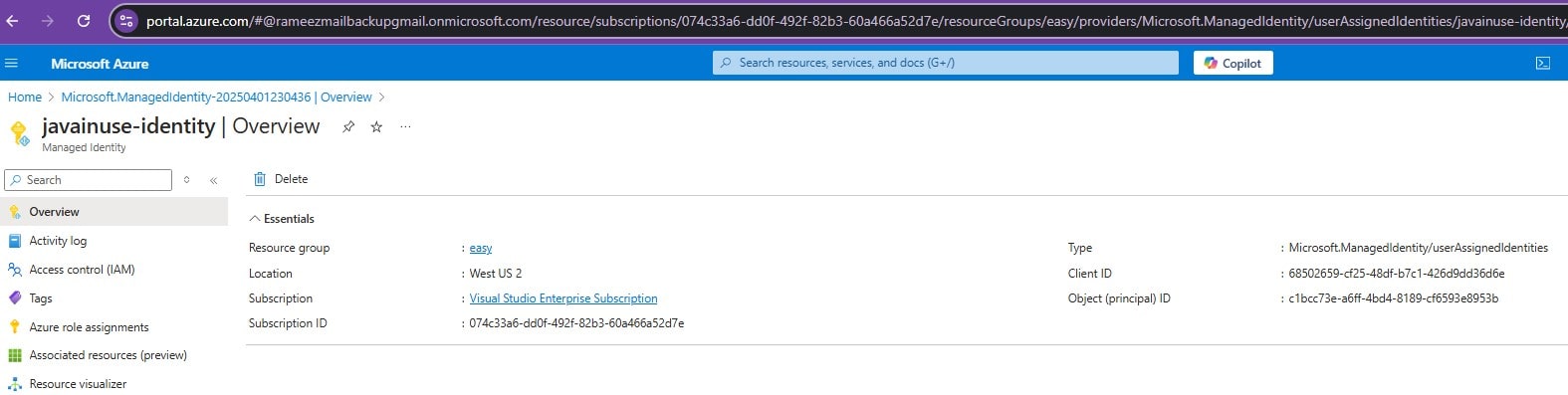

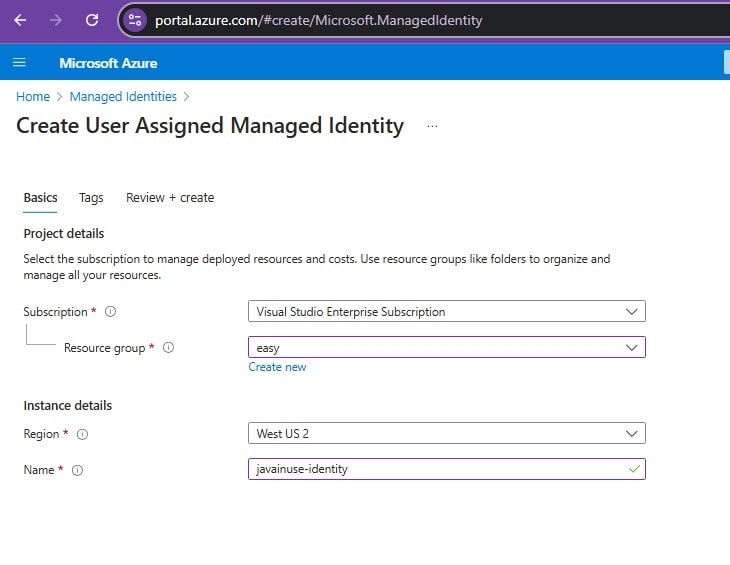

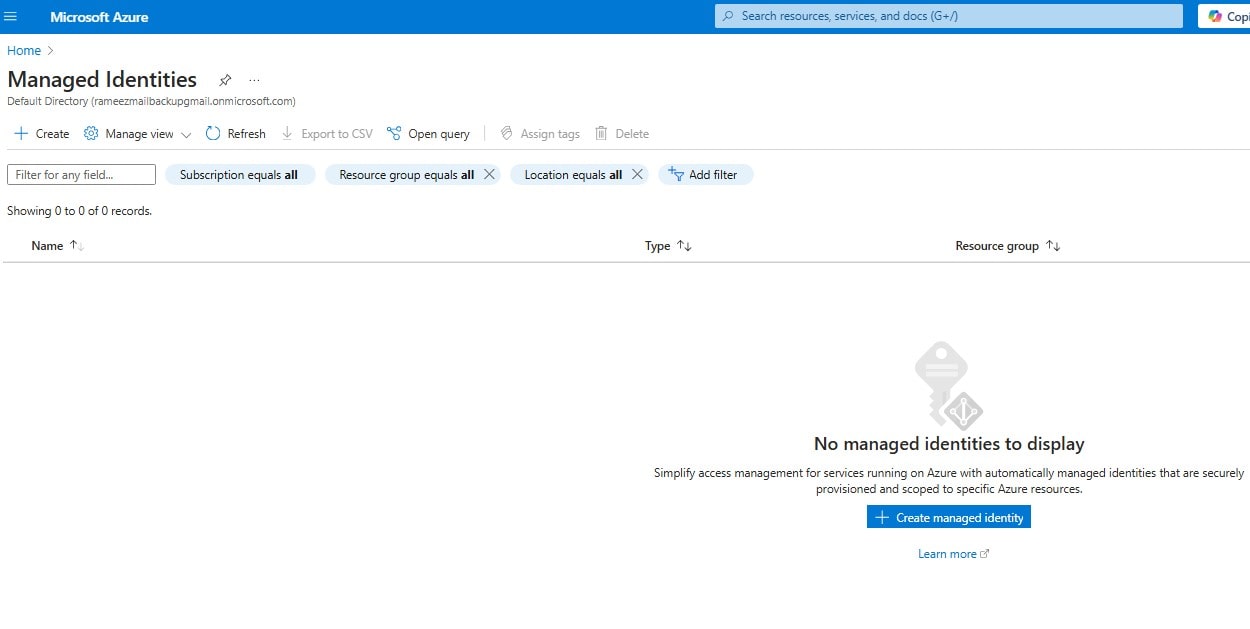

Create a managed identity named java-identity.

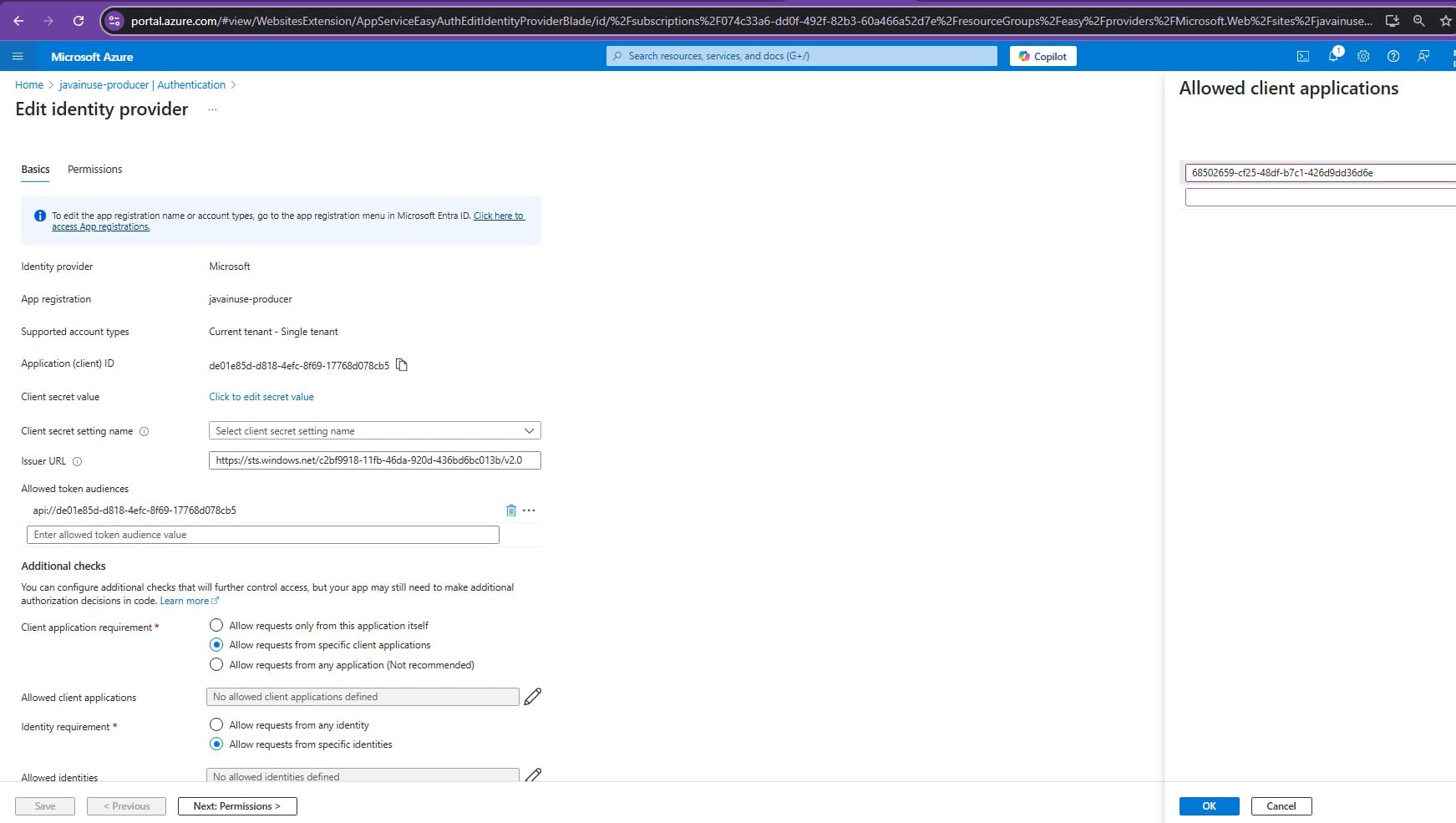

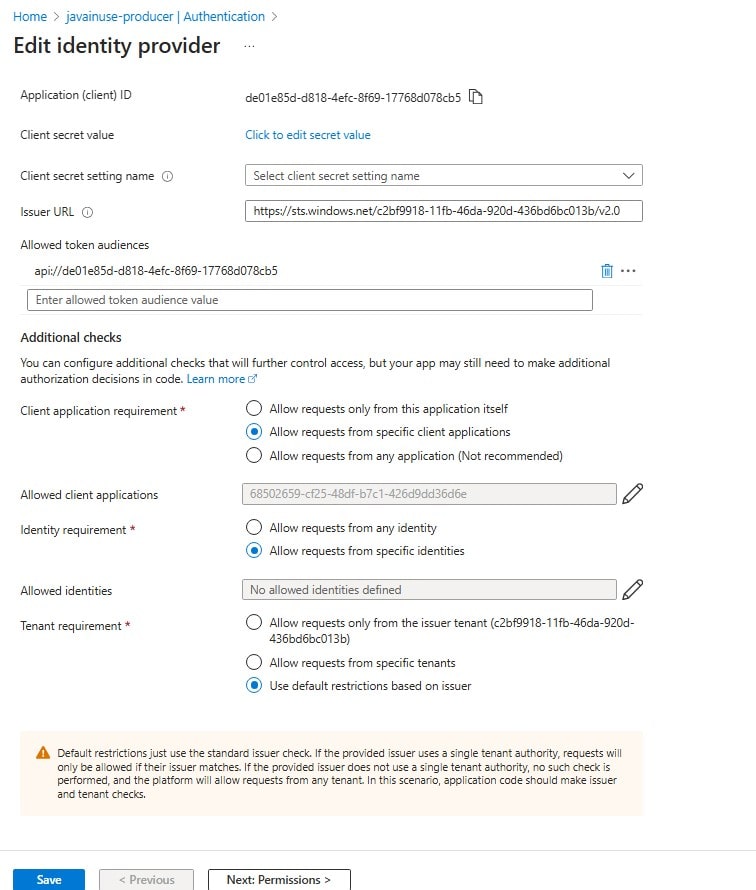

Edit the employee-producer identity provider, to allow access to the managed identity client id.

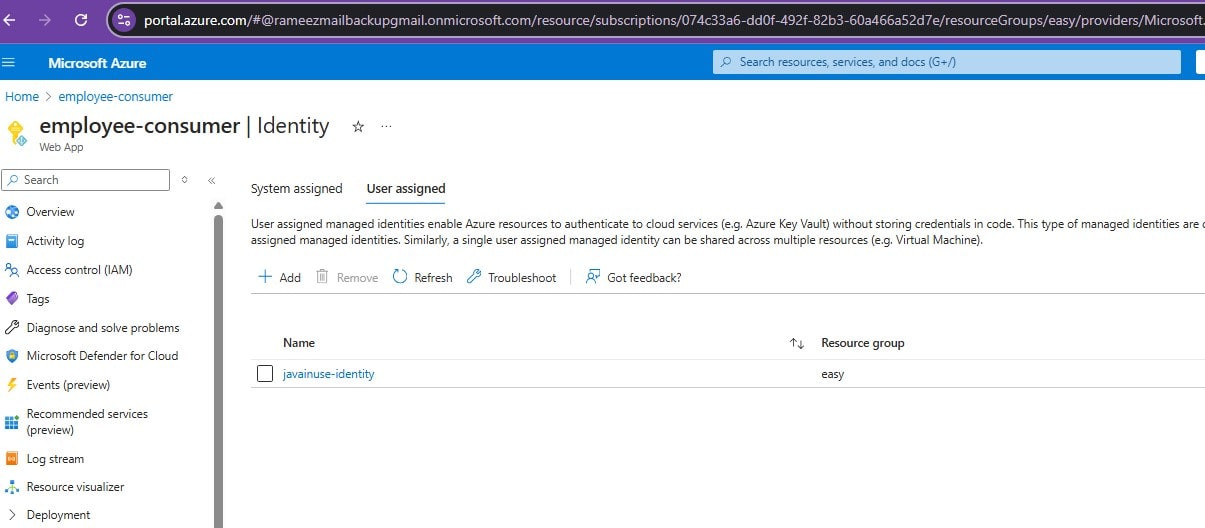

Next we attach the managed-indentity to employee consumer.

In the pom.xml add the following dependencies-

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.javainuse</groupId>
	<artifactId>employee-consumer</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>3.4.2</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>17</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>


		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>

		<dependency>
			<groupId>com.azure</groupId>
			<artifactId>azure-identity</artifactId>
			<version>1.5.5</version>
		</dependency>

	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>

Update the employee-consumer controller code as follows-

package com.javainuse.controllers;

import java.io.IOException;

import com.azure.core.credential.TokenCredential;
import com.azure.identity.ManagedIdentityCredentialBuilder;
import com.azure.core.credential.TokenRequestContext;

import org.springframework.http.HttpEntity;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpMethod;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestClientException;
import org.springframework.web.client.RestTemplate;

@RestController
public class ConsumerControllerClient {

	@RequestMapping(value = "/consume", method = RequestMethod.GET)
	public String getEmployee() throws RestClientException, IOException {
		try {
			// Use the specific managed identity by name
			TokenCredential credential = new ManagedIdentityCredentialBuilder()
					.clientId("68502659-cf25-48df-b7c1-426d9dd36d6e") // Use the client ID of javainuse identity
					.build();

			// Get token (adjust the scope as needed for your API)
			TokenRequestContext tokenRequestContext = new TokenRequestContext();
			tokenRequestContext.addScopes("de01e85d-d818-4efc-8f69-17768d078cb5/.default");

			String token = credential.getToken(tokenRequestContext).block().getToken();
			System.out.println("---Hello----");
			System.out.println(token);
			System.out.println("---Hello----");
			String baseUrl = "https://javainuse-producer-e7bhcffqdaf2bxa5.canadacentral-01.azurewebsites.net/employee";
			RestTemplate restTemplate = new RestTemplate();
			ResponseEntity<String> response = null;

			try {
				response = restTemplate.exchange(baseUrl, HttpMethod.GET, getHeaders(token), String.class);
			} catch (Exception ex) {
				System.out.println("API call error: " + ex);
				return "Error calling API: " + ex.getMessage();
			}

			System.out.println(response.getBody());
			return response.getBody();

		} catch (Exception ex) {
			System.out.println("Token acquisition error: " + ex);
			return "Error getting token: " + ex.getMessage();
		}
	}

	private static HttpEntity<?> getHeaders(String token) throws IOException {
		HttpHeaders headers = new HttpHeaders();
		headers.set("Accept", MediaType.APPLICATION_JSON_VALUE);
		headers.set("Authorization", "Bearer " + token);
		return new HttpEntity<>(headers);
	}
}

Deploy this image which will be used by the employee consumer web app. If we again try to access the employee producer code using employee consumer we get the output as follows-

Download Source Code

Download it -
Employee Producer + Azure Authentication Example
Employee Consumer + Azure Authentication Example
