Spring Boot Hazelcast Tutorial- Hello World example | JavaInUse



Spring Boot + Hazelcast Simple Example

In this post we develop a Spring Boot Application with Hazelcast. Previously we had developed a Spring Boot Application for performing JDBC operations. We will developing a similar module in this example and using Hazelcast to cache the data.

What is Hazelcast? Need for it?

  • Hazelcast is a radical, new approach towards data that was designed from the ground up around distribution. It embraces a new, scalable way of thinking in that data should be shared for resilience and performance while allowing us to configure the trade-offs surrounding consistency, as the data requirements dictate. Hazelcast is a distributed, highly available and scalable . You can find other details and tutorials of Hazelcast here.

    Lets Begin-

    The overview of application we will be developing is as follows-
    Maven Project will be as follows-

    In the Maven we need the spring boot test dependency.Maven will be as follows-
    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    	<modelVersion>4.0.0</modelVersion>

    	<groupId>com.javainuse</groupId>
    	<artifactId>boot-hazelcast</artifactId>
    	<version>0.0.1-SNAPSHOT</version>
    	<packaging>jar</packaging>

    	<name>boot-jdbc</name>
    	<description>Demo project for Spring Boot</description>

    	<parent>
    		<groupId>org.springframework.boot</groupId>
    		<artifactId>spring-boot-starter-parent</artifactId>
    		<version>1.5.2.RELEASE</version>
    		<relativePath /> <!-- lookup parent from repository -->
    	</parent>

    	<properties>
    		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    		<java.version>1.8</java.version>
    	</properties>

    	<dependencies>
    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-jdbc</artifactId>
    		</dependency>

    		<dependency>
    			<groupId>com.h2database</groupId>
    			<artifactId>h2</artifactId>
    			<scope>runtime</scope>
    		</dependency>

    		<dependency>
    			<groupId>org.springframework.boot</groupId>
    			<artifactId>spring-boot-starter-cache</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>com.hazelcast</groupId>
    			<artifactId>hazelcast</artifactId>
    		</dependency>
    		<dependency>
    			<groupId>com.hazelcast</groupId>
    			<artifactId>hazelcast-spring</artifactId>
    		</dependency>

    	</dependencies>

    	<build>
    		<plugins>
    			<plugin>
    				<groupId>org.springframework.boot</groupId>
    				<artifactId>spring-boot-maven-plugin</artifactId>
    			</plugin>
    		</plugins>
    	</build>


    </project>

    In the application.properties file specify the datasource properties
    spring.datasource.url=jdbc:h2:file:./DB
    spring.datasource.platform=hsqldb

    As we saw in the Spring Boot JDBC tutorial that any db initialization scripts stored in schema-.sql gets executed automatically.
    Since we using HSQL create the schema-hsqldb.sql file and specify the initialization scripts-
    DROP TABLE IF EXISTS employee;

    CREATE TABLE employee (
      empId VARCHAR(10) NOT NULL,
      empName VARCHAR(100) NOT NULL
    );


    Create the Employee Domain class
    package com.javainuse.model;

    public class Employee {

    	private String empId;
    	private String empName;

    	public String getEmpId() {
    		return empId;
    	}

    	public void setEmpId(String empId) {
    		this.empId = empId;
    	}

    	public String getEmpName() {
    		return empName;
    	}

    	public void setEmpName(String empName) {
    		this.empName = empName;
    	}

    	@Override
    	public String toString() {
    		return "Employee [empId=" + empId + ", empName=" + empName + "]";
    	}

    }

    Create the Hazelcast configuration class as follows-
    package com.javainuse;

    import com.hazelcast.config.Config;
    import com.hazelcast.config.EvictionPolicy;
    import com.hazelcast.config.MapConfig;
    import com.hazelcast.config.MaxSizeConfig;
    import org.springframework.context.annotation.Bean;
    import org.springframework.context.annotation.Configuration;

    @Configuration
    public class HazelcastConfiguration {

     @Bean
        public Config hazelCastConfig(){
            return new Config()
                    .setInstanceName("hazelcast-instance")
                    .addMapConfig(
                            new MapConfig()
                                    .setName("employees")
                                    .setMaxSizeConfig(new MaxSizeConfig(200, MaxSizeConfig.MaxSizePolicy.FREE_HEAP_SIZE))
                                    .setEvictionPolicy(EvictionPolicy.LRU)
                                    .setTimeToLiveSeconds(20));
        }

    }

    Create Service interface to specify employee operations to be performed.
    package com.javainuse.service;

    import java.util.List;

    import com.javainuse.model.Employee;

    public interface EmployeeService {
    	void insertEmployee(Employee emp);
    	void insertEmployees(List<Employee> employees);
    	void getAllEmployees();
    	void getEmployeeById(String empid);
    }


    The Service class implementation with hazelcast configurations.
    package com.javainuse.service.impl;

    import java.util.List;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.cache.annotation.CacheConfig;
    import org.springframework.cache.annotation.Cacheable;
    import org.springframework.stereotype.Service;

    import com.javainuse.dao.EmployeeDao;
    import com.javainuse.model.Employee;
    import com.javainuse.service.EmployeeService;

    @Service
    @CacheConfig(cacheNames = "employees");
    public class EmployeeServiceImpl implements EmployeeService {

    	@Autowired
    	EmployeeDao employeeDao;

    	@Override
    	public void insertEmployee(Employee employee) {
    		employeeDao.insertEmployee(employee);
    	}

    	@Override
    	public void insertEmployees(List<Employee> employees) {
    		employeeDao.insertEmployees(employees);
    	}

    	@Override
    	@Cacheable()
    	public List<Employee> getAllEmployees() {
    		System.out.println("Inside the service layer");
    		return employeeDao.getAllEmployees();

    	}

    	@Override
    	public void getEmployeeById(String empId) {
    		Employee employee = employeeDao.getEmployeeById(empId);
    		System.out.println(employee);
    	}

    }


    Create the DAO interface.
    package com.javainuse.dao;

    import java.util.List;

    import com.javainuse.model.Employee;

    public interface EmployeeDao {
    	void insertEmployee(Employee cus);
    	void insertEmployees(List<Employee> employees);
    	List<Employee> getAllEmployees();
    	Employee getEmployeeById(String empId);
    }

    The DAO implementation class.
    package com.javainuse.dao.impl;

    import java.sql.PreparedStatement;
    import java.sql.ResultSet;
    import java.sql.SQLException;
    import java.util.ArrayList;
    import java.util.List;
    import java.util.Map;

    import javax.annotation.PostConstruct;
    import javax.sql.DataSource;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.jdbc.core.BatchPreparedStatementSetter;
    import org.springframework.jdbc.core.RowMapper;
    import org.springframework.jdbc.core.support.JdbcDaoSupport;
    import org.springframework.stereotype.Repository;

    import com.javainuse.dao.EmployeeDao;
    import com.javainuse.model.Employee;

    @Repository
    public class EmployeeDaoImpl extends JdbcDaoSupport implements EmployeeDao{

    	@Autowired
    	DataSource dataSource;

    	@PostConstruct
    	private void initialize(){
    		setDataSource(dataSource);
    	}

    	@Override
    	public void insertEmployee(Employee emp) {
    		String sql = "INSERT INTO employee " +
    				"(empId, empName) VALUES (?, ?)" ;
    		getJdbcTemplate().update(sql, new Object[]{
    				emp.getEmpId(), emp.getEmpName()
    		});
    	}

    	@Override
    	public void insertEmployees(List<Employee> employees) {
    		String sql = "INSERT INTO employee " + "(empId, empName) VALUES (?, ?)";
    		getJdbcTemplate().batchUpdate(sql, new BatchPreparedStatementSetter() {
    			public void setValues(PreparedStatement ps, int i) throws SQLException {
    				Employee employee = employees.get(i);
    				ps.setString(1, employee.getEmpId());
    				ps.setString(2, employee.getEmpName());
    			}

    			public int getBatchSize() {
    				return employees.size();
    			}
    		});

    	}
    	@Override
    	public List<Employee> getAllEmployees(){
    		String sql = "SELECT * FROM employee";
    		List<Map<String, Object>> rows = getJdbcTemplate().queryForList(sql);

    		List<Employee> result = new ArrayList<Employee>();
    		for(Map<String, Object> row:rows){
    			Employee emp = new Employee();
    			emp.setEmpId((String)row.get("empId"));
    			emp.setEmpName((String)row.get("empName"));
    			result.add(emp);
    		}

    		return result;
    	}

    	@Override
    	public Employee getEmployeeById(String empId) {
    		String sql = "SELECT * FROM employee WHERE empId = ?";
    		return (Employee)getJdbcTemplate().queryForObject(sql, new Object[]{empId}, new RowMapper<Employee>(){
    			@Override
    			public Employee mapRow(ResultSet rs, int rwNumber) throws SQLException {
    				Employee emp = new Employee();
    				emp.setEmpId(rs.getString("empId"));
    				emp.setEmpName(rs.getString("empName"));
    				return emp;
    			}
    		});
    	}
    }

    Finally create the class with @SpringBootApplication and EnableCaching annotation.
    package com.javainuse;

    import java.util.ArrayList;
    import java.util.List;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.cache.annotation.EnableCaching;
    import org.springframework.context.ApplicationContext;

    import com.javainuse.model.Employee;
    import com.javainuse.service.EmployeeService;

    @SpringBootApplication
    @EnableCaching
    public class SpringBootJdbcApplication {

    	@Autowired
    	EmployeeService employeeService;

    	public static void main(String[] args) {
    		ApplicationContext context = SpringApplication.run(SpringBootJdbcApplication.class, args);
    		EmployeeService employeeService = context.getBean(EmployeeService.class);


    		Employee emp= new Employee();
    		emp.setEmpId("emp");
    		emp.setEmpName("emp");

    		Employee emp1= new Employee();
    		emp1.setEmpId("emp1");
    		emp1.setEmpName("emp1");

    		Employee emp2= new Employee();
    		emp2.setEmpId("emp2");
    		emp2.setEmpName("emp2");


    		employeeService.insertEmployee(emp);

    		List<Employee> employees = new ArrayList<>();
    		employees.add(emp1);
    		employees.add(emp2);
    		employeeService.insertEmployees(employees);



    		System.out.println("Inside the main class making call to service first time");
    		List<Employee> employeeList1 = employeeService.getAllEmployees();
    		for (Employee employee : employeeList1) {
    			System.out.println(employee.toString());
    		}


    		System.out.println("Inside the main class making call to service second time where it will use hazelcast");
    		List<Employee> employeeList2 = employeeService.getAllEmployees();
    		for (Employee employee : employeeList2) {
    			System.out.println(employee.toString());
    		}


    	}
    }

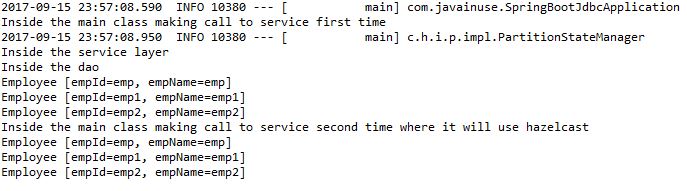

    Start the application-

    We can see here that the database call is made only during the first call. In the second call the data is fetched from the Hazelcast cache. Download Source Code

    Download it -
    Spring Boot + Hazelcast
