Spring Boot + Apache Tiles Hello World Application

In this post we create a spring boot application to display a simple welcome page with apache tiles.

Lets Begin-

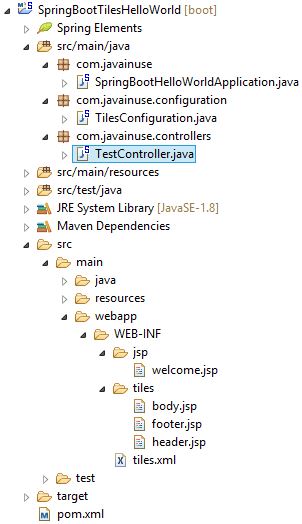

Maven project will be as follows -
boot-26_2

Along with the Spring Boot dependencies we have also tomcat-embed-jasper and jstl jar dependencies as these required when jsp view is used. The apache tiles dependencies have also been added.
In the pom file add the following dependencies-
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.javainuse</groupId>
	<artifactId>SpringBootHelloWorld</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>SpringBootHelloWorld</name>
	<description>Demo project for Spring Boot</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>1.4.1.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-tomcat</artifactId>
			<scope>provided</scope>
		</dependency>

		<dependency>
			<groupId>org.apache.tomcat.embed</groupId>
			<artifactId>tomcat-embed-jasper</artifactId>
			<scope>provided</scope>
		</dependency>

		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
		</dependency>

		<dependency>
			<groupId>org.apache.tiles</groupId>
				<artifactId>tiles-core</artifactId>
			<version>3.0.7</version>
		</dependency>

		<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-jsp</artifactId>
			<version>3.0.7</version>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>


	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>







Create the SpringBootHelloWorldApplication.java as below-
package com.javainuse;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootHelloWorldApplication {

	public static void main(String[] args) {
		SpringApplication.run(SpringBootHelloWorldApplication.class, args);
	}
}

@RequestMapping maps /welcome.html request to firstPage() method.
package com.javainuse.controllers;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

@Controller
public class TestController {

	@RequestMapping("/welcome")
	public String firstPage() {
		return "welcome";
	}

}

Next define the TilesConfiguration as follows
package com.javainuse.configuration;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.view.UrlBasedViewResolver;
import org.springframework.web.servlet.view.tiles3.TilesConfigurer;
import org.springframework.web.servlet.view.tiles3.TilesView;

@Configuration
public class TilesConfiguration {

	@Bean
	public UrlBasedViewResolver tilesViewResolver() {
		UrlBasedViewResolver tilesViewResolver = new UrlBasedViewResolver();

		tilesViewResolver.setViewClass(TilesView.class);

		return tilesViewResolver;
	}

	@Bean
	public TilesConfigurer tilesConfigurer() {
		TilesConfigurer tilesConfigurer = new TilesConfigurer();

		String[] defs = { "WEB-INF/tiles.xml" };

		tilesConfigurer.setDefinitions(defs);

		return tilesConfigurer;
	}

}
Define the tiles.xml as follows-
	<?xml version="1.0" encoding="ISO-8859-1" ?>
<!DOCTYPE tiles-definitions PUBLIC
       "-//Apache Software Foundation//DTD Tiles Configuration 3.0//EN"
       "http://tiles.apache.org/dtds/tiles-config_3_0.dtd">


<tiles-definitions>

	<definition name="welcome" template="/WEB-INF/jsp/welcome.jsp">
		<put-attribute name="title" value="Welcome Page" />
		<put-attribute name="header" value="/WEB-INF/tiles/header.jsp" />
		<put-attribute name="body" value="/WEB-INF/tiles/body.jsp" />
		<put-attribute name="footer" value="/WEB-INF/tiles/footer.jsp" />
	</definition>

</tiles-definitions>




Define the header.jsp
	<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
	pageEncoding="ISO-8859-1"%>

Page Header Here.


Define the body.jsp
	<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
	pageEncoding="ISO-8859-1"%>

Welcome Apache Tiles!


Define the footer.jsp <pre class="prettyprint" style="background-color:#f7f7f7 !important;font-size:inherit"> lgt; %@ page language="java" contentType="text/html; charset=ISO-8859-1" pageEncoding="ISO-8859-1"%> Page Footer Here.
Last we define the welcome.jsp as below-

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
	pageEncoding="ISO-8859-1"%>
<%@ taglib uri="http://tiles.apache.org/tags-tiles" prefix="tiles"%>

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">

<title><tiles:insertAttribute name="title" /></title>

</head>
<body>

	<tiles:insertAttribute name="header" />
	<br />
	<tiles:insertAttribute name="body" />
	<br />
	<tiles:insertAttribute name="footer" />

</body>
</html>
Compile and the run the SpringBootHelloWorldApplication.java as a Java application.

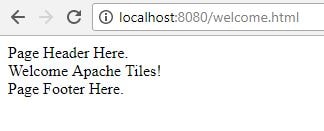

Go to localhost:8080/welcome
boot-26_1

Download Source Code

Download it -
