Using Spring MVC HandlerInterceptor with Spring Boot - Hello World example

In this post we develop a simple Spring Boot application with interceptors.
We use the interceptor to log the user activity. We will expose an API and then log the status of User interaction.

Video

This tutorial is explained in the below Youtube Video.


Lets Begin-

The project will be as follows-
Spring Boot Interceptor Tutorial
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.javainuse</groupId>
	<artifactId>springboot-interceptor</artifactId>
	<version>0.0.1</version>
	<packaging>jar</packaging>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>1.4.0.RELEASE</version>
		<relativePath/>
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>
Next we define the LoggerInterceptor which implements the HandlerInterceptor.
The LoggerInterceptor will override the following methods-
  • preHandle() - This method is used to intercept the request before it is handed over to the handler method. If It turns a boolean value, true : continue the handler execution chain; false , stop the execution chain and return it.
  • postHandle() - This method is used to intercept the request after the handler execution, Here user can manipulate the ModelAndView object before render it to view page.
  • afterCompletion() - This is a HandlerInterceptor callback method called after the complete request has finished.




Define the class implementing the spring HandlerInterceptor interface as follows-
package com.javainuse.interceptor.config;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.slf4j.Logger;
import org.springframework.stereotype.Component;
import org.springframework.web.servlet.HandlerInterceptor;
import org.springframework.web.servlet.ModelAndView;

@Component
public class LoggerInterceptor implements HandlerInterceptor {

	Logger log = org.slf4j.LoggerFactory.getLogger(this.getClass());

	@Override
	public void afterCompletion(HttpServletRequest request,
			HttpServletResponse response, Object object, Exception arg3)
			throws Exception {
		log.info("Request is complete");
	}

	@Override
	public void postHandle(HttpServletRequest request,
			HttpServletResponse response, Object object, ModelAndView model)
			throws Exception {
		log.info("Handler execution is complete");
	}

	@Override
	public boolean preHandle(HttpServletRequest request,
			HttpServletResponse response, Object object) throws Exception {
		log.info("Before Handler execution");
		return true;
	}

}


Next we register the custom loggerInterceptor using the Spring WebMvcConfigurerAdapter class.
package com.javainuse.interceptor.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;

@Configuration
public class InterceptorConfig extends WebMvcConfigurerAdapter {

	@Autowired
	LoggerInterceptor logInterceptor;

	@Override
	public void addInterceptors(InterceptorRegistry registry) {
		registry.addInterceptor(logInterceptor);
	}
}
Finally we expose the LoggerController as follows-
package com.javainuse.interceptor.controller;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class LoggerController {

	Logger log = LoggerFactory.getLogger(this.getClass());

	@RequestMapping("/logger")
	public String executeLogger() {
		log.info("inside the executeLogger method");
		return "Hello World Logger Interceptor";
	}
}
Finally create the SpringBoot class annotated with @SpringBootApplication.
package com.javainuse.interceptor.config;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootHelloWorldApplication {

	public static void main(String[] args) {
		SpringApplication.run(SpringBootHelloWorldApplication.class, args);
	}
}

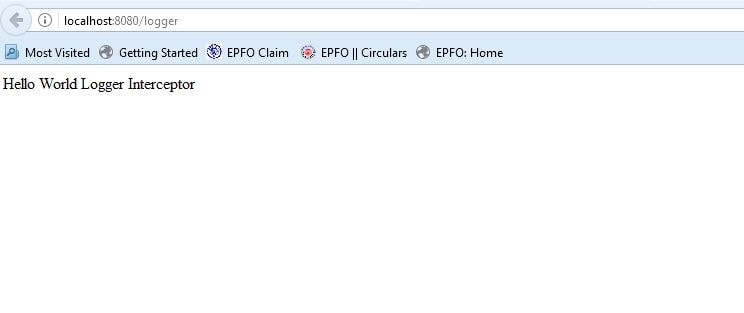

After running the application- go to http://localhost:8080/logger

Spring Boot Interceptor Example

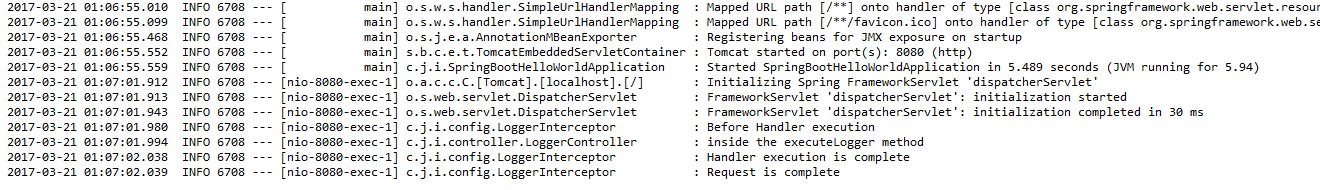

In the console we can see the request gets intercepted as follows-

Spring Boot Interceptor

Download Source Code

Download it -
Spring Boot + Interceptors Hello World Example
